Deltron Alloys stands as a prominent manufacturer, exporter, and supplier in the industry. Washers are among our highly sought-after products, featuring a diverse range, including 13 mm MS Round Washers, Square Plate MS Washers, Mild Steel Round Washers, MS Spring Lock Washers, 25 Mm Mild Steel Plain Washers, Metal-Coated Mild Steel Star Lock Washers, and more.
Our washers find applications across various industries, including Mechanical, Chemical, and Petrochemical. Each type of washer offers distinct capabilities to suit specific design requirements and applications. Some specialised washer types are tailored for specific purposes. Washers, typically disk-shaped with a central hole, serve the purpose of joining two components, such as a bolt and a screw. They are crafted from various metals and serve diverse functions, including load distribution, spacing, fastener locking, vibration reduction, and corrosion prevention.
Washers can be categorised into three main types: Plain washers, the most common type, are employed in a wide range of industries. They are used to distribute loads, protect surfaces, and often serve as electrical insulators. Plain washers come in various subtypes, including wall washers, fender washers, and torque washers.
Spring washers, another vital type, offer axial flexibility. They are equipped with spring characteristics that help reduce wear and tear during operation. Spring washers find applications in diverse industries, such as aerospace and transportation, including actuator systems like flight control and landing gear.
Locking washers, a subtype of spring washers, are used to secure nuts, bolts, screws, and other components during machinery operation. These washers are widely employed in automotive, aerospace, and household appliances.
At Deltron Alloys, we uphold the highest standards in washer manufacturing and are dedicated to providing top-notch service. Our products are meticulously packaged using various methods, including plastic wrapping and wooden boxes, ensuring safe delivery to our valued customers.
FLAT WASHERS
MACHINE WASHERS

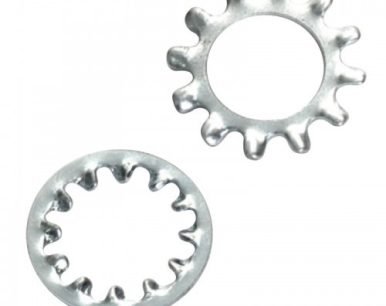

STAR WASHERS
Types of Washers
Specification of Washers
| Dimension | : | ASTM,DIN, BS,GB, IS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Washer Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Heat Treatment | : | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
| Standard | : | ASTM A /SA 193 / 194 |
| Dimension | : | ASTM,DIN, BS,GB, IS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Washer Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Heat Treatment | : | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18-10 | X2CrNi18-9 / X2CrNi19-11 |
SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
AISI Grade Equivalent | ASTM | JIS Equivalent | Stainless Steel Notation | EN/DIN Numerical Equivalent | UNS designation | EN/DIN Symbolical Equivalent | – |
AISI 310 | A479 | SUS310 | SS 310 | EN 1.4841 | UNS S31000 | X15CrNiSi25-20 | – |
STANDARD | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
BS | En | No | Name | ||||
SS 321 | S32100 | 321S31 | 58E | 1.4541 | X5CrNi18-10 | 2332 | SUS 321 |
SS 410 | S41000 | 410S21 | 56A | 1.4006 | X12Cr13 | 2302 | SUS 410 |
Washer Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
SS 310 | 0.25 max | 2 max | 1.50 max | 0.045 max | 0.030 max | 24 – 26 | – | 19 – 22 | – |
SS 316 | 0.035 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2.0 – 3.0 | 10 – 14 | – |
SS 316L | 0.035 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2.0 – 3.0 | 10 – 14 | – |
SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2.0 – 3.0 | 10 – 14 | 68.395 min |
SS 347 | 0.08 max | 2 max | 1.0 max | 0.040 max | 0.030 max | 17 – 20 | – | 9 – 13 | – |
SS 410 | 0.15 max | 1.0 max | 1.0 max | 0.040 max | 0.030 max | 11.5 – 13.5 | – | 0.75 max | – |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 317L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 18 – 20 | 3.0 – 4.0 | 11 – 15 | 57.89 min |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
SS 904L | 0.20 max | 2 max | 1.0 max | 0.045 max | 0.035 max | 19 – 23 | 4.0 – 5.0 | 23 – 28 | 1.0 – 2.0 |
Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
SS 321 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 17 – 19 | 0.10 max | 9 – 12 | 5(C+N) – 0.70 max |
Mechanical Properties of Washer
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | ||||
SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | ||||
SS 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | ||||
SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | ||||
SS 317L | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | ||||
SS 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | ||||
Element | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |||||
Rockwell B (HR B) max | Brinell (HB) max | ||||||||
SS 316 | 515 | 205 | 40 | 95 | 217 | ||||
SS 316L | 485 | 170 | 40 | 95 | 217 | ||||
SS 347 | 515 | 205 | 40 | 92 | 201 | ||||
SS 904L | 490 | 220 | 35 | 70 | 90 | ||||
SS 410 | 480 | 275 | 16 | 95 | 201 | ||||
| Standard | : | ASTM / ASME |
| Dimension | : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length | : | M02 to M33 |
| Washer Size | : | 3 mm to 200 mm |
| Materials / Grades | : | Monel 400, K500 |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Washer Chemical Composition
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Mechanical Properties of Washer
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| Standard | : | ASTM / ASME |
| Dimension | : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length | : | M02 to M33 |
| Washer Size | : | 3 mm to 200 mm |
| Materials / Grades | : | Inconel 600, 601, 625 / Incoloy 800, 800H, 800HT |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe | – |
Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe | – |
Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | – |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Washer Chemical Composition
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.0 – 10.0 | 72.0 min | 14.0 – 17.0 | – | – |
Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Bal. | 58.0 – 63.0 | 21.0 – 25.0 | – | – |
Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 | – | – |
Incoloy 800 | 0.10 max | 1.50 max | 1.0 max | 0.015 max | 0.75 max | 39.50 min | 30.0 – 35.0 | 19.0 – 23.0 | 0.15 – 0.60 | 0.15 – 0.60 |
Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.0 max | 0.015 max | 0.75 max | 39.50 min | 30.0 – 35.0 | 19.0 – 23.0 | 0.15 – 0.60 | 0.15 – 0.60 |
Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.0 max | 0.015 max | 0.75 max | 39.50 min | 30.0 – 35.0 | 19.0 – 23.0 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Mechanical Properties of Washer
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Incoloy 800 | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800H | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Standard | : | ASTM / ASME |
| Dimension | : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length | : | M02 to M33 |
| Washer Size | : | 3 mm to 200 mm |
| Materials / Grades | : | Hastelloy C276 |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
Washer Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Mechanical Properties of Washer
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Standard | : | ASTM / ASME |
| Dimension | : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length | : | M02 to M33 |
| Washer Size | : | 3 mm to 200 mm |
| Materials / Grades | : | Titanium Grade 2, Grade 5 |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
STANDARD | WERKSTOFF NR. | UNS |
Titanium Grade 2 | 3.7035 | R50400 |
Titanium Grade 5 | 3.7165 | N56400 |
Washer Chemical Composition
Grade | Ti | C | Fe | H | N | O | Al | V |
Titanium Grade 2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
Titanium Grade 5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Mechanical Properties of Washer
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Titanium Gr.2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900, MPa – 344 | Psi – 39900, MPa – 275 | 20 % |
Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| Dimension | : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Washer Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Heat Treatment | : | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
STANDARD | WERKSTOFF NR. | UNS | SAF |
Duplex Steel S31803 | 1.4462 | S31803 | – |
Duplex Steel S32205 | 1.4462 | S32205 | 2205 |
Super Duplex Steel S32750 | 1.4410 | S32750 | 2507 |
Super Duplex Steel S32760 | 1.4410 | S32760 | – |
Washer Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Mechanical Properties of Washer
Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
S31803 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
S32750 | 7.8 | 0.281 | 1350 | 2460 |
S32760 | 7.8 | 0.281 | 1350 | 2460 |
| Standard | : | ASTM / ASME |
| Dimension | : | ASTM, DIN, BS, GB, IS and all International Standards |
| Diameter | : | 15-26mm |
| Size | : | 20 to 60 mm |
| Materials | : | Mild Steel |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
Washer Chemical Composition
Mechanical Properties of Washer
| Standard | : | ASTM / ASME |
| Dimension | : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length | : | M02 to M33 |
| Washer Size | : | 3 mm to 200 mm |
| Materials / Grades | : | Alloy 20 |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
| STANDARD | WERKSTOFF NR. | UNS |
| Alloy 20 | 2.4660 | N08020 |
Washer Chemical Composition
Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min | 2.00 – 3.00 | 0.045 max |
Mechanical Properties of Washer
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| Dimension | : | ASTM, DIN, BS,GB, IS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Washer Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Heat Treatment | : | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type | : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Equivalent Grades for Washer
| STANDARD | UNS | WERKSTOFF NR. |
| 15-5PH | S15500 | 1.4545 |
| 17-4PH | S17400 | 1.4542 |
Washer Chemical Composition
Grade | C | Mn | P | S | Si | Cr | Ni | Cu | Nb Ta | – |
17-4PH | 0.07 | 1.00 | 0.04 | 0.03 | 1.00 | 15.00 – 17.50 | 3.00 – 5.00 | 3.00 – 5.00 | 0.15 – 0.45 | – |
Grade | C | Mn | P+S max | Si | Cr | Ni | Cu | Cb | Fe | Mo |
15-5 PH | 0.07 | 1.0 | 1.0 | 0.03P 0.015S x | 14.0 – 15.50 | 3.50 – 4.50 | 2.50 – 4.5 | 0 0.45 | Bal | 0.50 |
Mechanical Properties of Washer
Element | Density g/cm (3) | Ultimate Tensile Strength Ksi (MPa) | 0.2% Tensile Yield Strength Ksi (MPa) | Elongation % in 2″ (50mm) | Hardness Rockwell C |
17-4PH | 160 (1103) | 145 (1000) | 5.0 | 35 | – |
Element | Density g/cm (3) | Density lb/in (3) | Thermal Conductivity 70-212° | Thermal Conductivity 70-932° | Electrical Resistivity |
15-5PH | 7.75 | 0.280 | 10.6 | 13.1 | 98 |
