Aluminium Pipes & Tubes Stockist | Aluminium Pipes & Tubes Exporter | Aluminium Welded Pipes & Tubes | Aluminium Seamless Pipes & Tubes

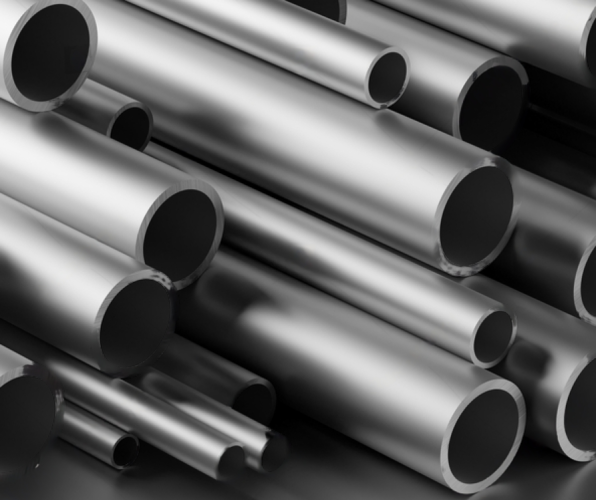

Deltron Alloys is a leading supplier of aluminium alloy pipes and tubes. Our product range includes aluminium alloy pipes and tubes with general specifications, offering versatility and high-quality performance.
Our Aluminum Pipes & Tubes are known for their excellent weldability, retaining most of their mechanical strength. This outstanding welding capability, combined with remarkable corrosion resistance in seawater environments, makes Alloy 5086 a top choice for marine applications.
Furthermore, Aluminum Pipes & Tubes have found applications in vehicle reinforcement plates due to their exceptional strength properties. We provide these pipes and tubes in various specifications and dimensions, catering to the unique requirements of our clients.
At Deltron Alloys, we offer a comprehensive range of Pipes & Tubes at competitive prices, adhering to both national and international standards. Our commitment is to provide high-quality aluminium alloy solutions to meet the diverse needs of our customers.
Applications Of Aluminium Pipes & Tubes:
- Auto Aircraft Cryogenics
- Marine
- Desalination Units
- Welded Structures
- Storage Tanks
Standards | : | ASTM B221, ASTM-B-209M, EN573, EN485, AMS 4003 |
Grade | : | Aluminium Alloy 1100 (UNS A91100) |
Size | : | 1/2″ NB – 24″ NB |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Compositions of Aluminium Alloy 1100 Pipes :
Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Each | AI |
1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 | 99.60% |
1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 | remainder |
Mechanical Properties of Aluminium Alloy 1100 Pipes :
Alloy | Temper | UTS(Mpa) | % Elongation | |||
Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
1100 | O | 75 | 110 | 20 | 25 | 29 |
H12 | 95 | 130 | 5 | 6 | 7 | |
H14 | 110 | 145 | 3 | 4 | 5 | |
H16 | 130 | 165 | 2 | 3 | 4 | |
H18 | 150 | — | 2 | 2 | 3 | |
Standards | : | ASTM B-209, EN573, and EN485 |
Grade | : | Aluminium Alloy 2014 (UNS A92014) |
Size | : | 22*2.5 / 30*4.8 |
Outer Diameter | : | 1″ through 16″ |
Schedule | : | SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Compositions of Aluminium Alloy 2014 Pipes :
Chemical Element | Si | Fe | Cu | Zn | Mn | Mg | Ti | Others Total | Cr | Ni | Other Each | Ti+Zr | Al |
% Present | 0.50 – 0.90 | 0.0 – 0.50 | 3.90 – 5.00 | 0.0 – 0.25 | 0.40 – 1.20 | 0.20 – 0.80 | 0.0 – 0.15 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.20 | Balance |
Physical Properties of Aluminium Alloy 2014 Pipes :
Physical Property | Density | Modulus of Elasticity | Electrical Resistivity | Thermal Conductivity | Thermal Expansion | Melting Point |
Value | 2.82 g/cm³ | 71 GPa | 0.045 x10^-6 Ω .m | 138 W/m.K | 23 x10^-6 /K | 535 °C |
Mechanical Properties of Aluminium Alloy 2014 Pipes :
Mechanical Property | Tensile Strength | Proof Stress | Hardness Brinell |
Value | 440 Min MPa | 390 Min MPa | 133 HB |
Standards | : | ASTM B211, B316, B209, EN573, and EN485 |
Grade | : | Aluminium Alloy 2017 (UNS A92017) , WR. NO 3.1325 |
Outer Diameter | : | 1″ through 16″ |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Composition of Aluminium Alloy 2017 Pipes :
Weight% | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others Each | Other Total |
2017 USA | Rem | 0.20-0.8 | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.40-0.8 | 0.10 max | 0.25 max | 0.15 max | 0.05 max | 0.15 max |
Mechanical Properties of Aluminium Alloy 2017 Pipes :
Material | Condition | Tensile Strength (N/Mm²) Min | Yield Strength | Elongation In 4D % | ||
Ksi | Mpa | Ksi | Mpa | |||
2017 | 2017-T4 Bar | 55 | 379 | 32 | 221 | 12 |
Standards | : | ASTM B209, ASTM-B-209, EN573, and EN485 |
Grade | : | Aluminium Alloy 2024 (UNS A92024) |
Size | : | 8 (1-1/2″ / 1.900″) |
Outer Diameter | : | 1″ through 16″ |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Composition of Aluminium Alloy 2024 Pipes :
Weight (%) | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
min. | Bal |
|
| 3.80 | 0.30 | 1.20 |
|
|
|
|
max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
Mechanical Properties of Aluminium Alloy 2024 Pipes :
Temper | Tensile Strength (KSI) | Yield Strength (KSI) | Elongation % |
O (annealed) | 32 | 14 | 12 |
T3 | 63 | 42 | 15 |
Standards | : | ASTM B209 |
Grade | : | Aluminium Alloy 3003 (UNS A93003) |
Size | : | 1/8″ – 16″ (3mm – 2500mm) |
Outer Diameter | : | 0.020″ – 2″ (0.2mm – 150mm) |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Composition of Aluminium Alloy 3003 Pipes :
Al | Cr | Cu | Fe | Mg | Mn | Other Total | Si | Ti | Zn |
Remainder | – | 0.05 to 0.20% | 0.70% | – | 1.0 to 1.5% | 0.15% | 0.60% | – | 0.10% |
Mechanical Properties of Aluminium Alloy 3003 Pipes :
Properties | Tensile strength | Yield strength | Shear strength | Fatigue strength | Elastic modulus | Poisson’s ratio | Elongation | Hardness |
Metric | 130 MPa | 125 MPa | 83 MPa | 55 MPa | 70-80 GPa | 0.33 | 10.00% | 35 |
Imperial | 18855 psi | 18130 psi | 12039 psi | 7977 psi | 10153-11603 ksi | 0.33 | 10% | 35 |
Standards | : | ASTM B221, B241; ASME SB241 |
Grade | : | Aluminium Alloy 5052 (UNS A95052) |
Size | : | 8 (1-1/2″ / 1.900″) |
Outer Diameter | : | 1″ through 16″ |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Composition of Aluminium Alloy 5052 Pipes :
Grade | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
5052 | 0.50 | 0.50 | 3.8/4.9 | 0.30/0.9 | 1.2/1.8 | 0.10 | 0.25 | 0.15 | Balance |
Mechanical Properties of Aluminium Alloy 5052 Pipes :
Mechanical Property | Hardness, Brinell | Specific Heat | Poisson’s Ratio | Melting Point | Electrical Resistivity | Modulus of Elasticity |
Value | 47 | 0.88 J/g-°C | 0.33 | 607 – 649 °C | 4.99e-006 ohm-cm | 70.3 GPa |
Grade | : | Aluminium Alloy 5082 (UNS A95082) |
Size | : | 1/2″ NB – 24″ NB |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Composition of Aluminium Alloy 5082 Pipes :
Chemical Element | Al | Cr | Cu | Fe | Mg | Mn | Si | Ti | Zn | Residuals |
% Present | 95.2 to 98.3% | 0.25% max | 0.1% max | 0.5% max | 0.6 to 1.2% | 0.4% to 1.0% | 0.7 to 1.3% | 0.1% max | 0.2% max | 0.15% max |
Physical Properties of Aluminium Alloy 5082 Pipes :
Property | Density | Melting Point | Modulus of Elasticity | Electrical Resistivity | Thermal Conductivity | Thermal Expansion |
Value | 2700 kg/m3 | 555°C | 70 GPa | 0.038×10-6 Ω.m | 180 W/m.K | 24×10-6 /K |
Mechanical Properties of Aluminium Alloy 5082 Pipes :
Property | Proof Stress | Tensile Strength | Hardness Brinell |
Value | 85 Max MPa | 150 Max MPa | 40 HB |
Standards | : | ASTM B221, ASTM B241, ASTM B429, AMS-QQ-A-200/9 |
Grade | : | Aluminium Alloy 5083 (UNS A95083) |
Size | : | 8 (1-1/2″ / 1.900″) |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Composition of Aluminium Alloy 5083 Pipes :
Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
5083 | Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
Mechanical Properties of Aluminium Alloy 5083 Pipes :
Properties | Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
Metric | 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Standards | : | ASTM B210, ASTM B234, ASTM B241, ASTM B483 |
Grade | : | Aluminium Alloy 5086 (UNS A95086) |
Size | : | 1/8″ – 16″ (3mm – 2500mm) |
Outer Diameter | : | 0.020″ – 2″ (.2mm – 150mm) |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Composition of Aluminium Alloy 5086 Pipes :
Chemical Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others each | Others total | Al |
% Present | 0.4 | 0.5 | 0.1 | 0.20-0.70 | 3.5-4.5 | 0.05-0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Balance |
Mechanical Properties of Aluminium Alloy 5086 Pipes :
Properties | Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
Metric | 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Grade | : | Aluminium Alloy 5754 (UNS A95754) |
Size | : | 8 (1-1/2″ / 1.900″) |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Compositions of Aluminium Alloy 5754 Pipes :
Element | Si | Fe | Mn | Mg | Al |
% Present | 0.4 | 0.4 | 0.5 | 2.6-3.2 | Balance |
Mechanical Properties of Aluminium Alloy 5754 Pipes :
Temper | Proof Stress 0.2% (MPa) | Tensile Strength (MPa) | Shear Strength (MPa) | Elongation A5 (%) | Hardness Vickers (HV) |
H22 | 185 | 245 | 150 | 15 | 75 |
H24 | 215 | 270 | 160 | 14 | 80 |
H26 | 245 | 290 | 170 | 10 | 85 |
0/H111 | 100 | 215 | 140 | 25 | 55 |
Standards | : | ASTM / ASME SB 221 |
Grade | : | Aluminium Alloy 6061 (UNS A96061) |
Size | : | 8 (1-1/2″ / 1.900″) |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Compositions of Aluminium Alloy 6061 Pipes :
Mn | Si | Cr | Cu | Fe | Zn | Al | Mg | Ti | Other Each | Other Total |
0.15 | 0.4-0.8 | 0.15-0.35 | 0.15-0.4 | 0.7 | 0.25 | Remainder | 0.8-1.2 | 0.15 | 0.005 | 0.15 |
Mechanical Properties of Aluminium Alloy 6061 Pipes :
Tensile Strength (PSI) | Yield Strength (PSI) | Shear Strength (PSI) | Elongation In 2″ | Brinell Hardness |
45,000 | 40,000 | 31,000 | 12 | 95 |
Standards | : | ASTM B221, ASTM B241, ASTM B429, AMS-QQ-A-200/9 |
Grade | : | Aluminium Alloy 6063 (UNS A96063) |
Size | : | 8 (1-1/2″ / 1.900″) |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Compositions of Aluminium Alloy 6063 Pipes :
Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn |
Bal | 0.40 – 0.8 | 0.7 | 0.15 – 0.40 | 0.15 | 0.04 – 0.35 | 0.8 – 1.2 | 0.15 | 0.25 |
Mechanical Properties of Aluminium Alloy 6063 Pipes :
Properties | Yield Strength | Tensile Strength | Hardness Brinell | Elongation |
Metric | 40 Ksi | 45 Ksi | 95 BHN | 17 % |
Standards | : | ASTM B221, ASTM B241, ASTM B429, AMS-QQ-A-200/9 |
Grade | : | Aluminium Alloy 6082 (UNS A96082) |
Outer Diameter | : | 201 – 420 x 10 – 80/ 61- 200 x 5 – 40 |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Compositions of Aluminium Alloy 6082 Pipes :
Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Ti | Other Each | Others Total |
Bal | 0.7 – 1.3 | 0.50 max | 0.10 max | 0.40 – 1.00 | 0.25 max | 0.06 – 1.20 | 0.20 max | 0.10 max | 0.05 max | 0.15 max |
Physical Properties of Aluminium Alloy 6082 Pipes :
Physical Property | Density | Melting Point | Thermal Expansion | Modulus of Elasticity | Thermal Conductivity | Electrical Resistivity |
Value | 2.70 g/cm³ | 555 °C | 24 x10^-6 /K | 70 GPa | 180 W/m.K | 0.038 x10^- 6Ω .m |
Mechanical Properties of Aluminium Alloy 6082 Pipes :
Properties | Proof Stress | Tensile Strength | Hardness Brinell | Melting Point |
Metric | 85 Max MPa | 150 Max MPa | 40 HB | 555°C |
Grade | : | Aluminium Alloy 6083 (UNS A96083) |
Size | : | 8 (1-1/2″ / 1.900″) |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Grade | : | Aluminium Alloy 7050 (UNS A97050) |
Size | : | 8 (1-1/2″ / 1.900″) |
Outer Diameter | : | 1″ through 16″ |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Compositions of Aluminium Alloy 7050 Pipes :
Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti |
0.12 | 0.15 | 2.0/2.6 | 0.10 | 1.9/2.6 | 0.04 | 5.7/6.7 | 0.06 |
Physical Properties of Aluminium Alloy 7050 Pipes :
Properties | Tensile strength | Yield strength | Fatigue strength | Elastic modulus | Poisson’s ratio | Elongation |
Metric | 515 MPa | 455 MPa | 240 MPa | 70-80 GPa | 0.33 | 11% |
Imperial | 74695 psi | 65992 psi | 34809 psi | 10153-11603 ksi | 0.33 | 11% |
Mechanical Properties of Aluminium Alloy 7050 Pipes :
Properties | Density | Melting point |
Metric | 2.6-2.8 g/cm3 | 494°C |
Imperial | 0.0939-0.101 lb/in3 | 920°F |
Standards | : | ASTM B221, ASTM B241, ASTM B429, AMS-QQ-A-200/9 |
Grade | : | Aluminium Alloy 7075 (UNS A97075) |
Size | : | 8 (1-1/2″ / 1.900″) |
Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded. |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Square, Rectangular, Hydraulic Etc |
Chemical Compositions of Aluminium Alloy 7075 Pipes :
Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti |
0.40 | 0.50 | 1.2 / 2.0 | 0.30 | 2.1 / 2.9 | 0.18 / 0.28 | 5.1 / 6.1 | 0.20 |
Physical Properties of Aluminium Alloy 7075 Pipes :
Properties | Density | Melting point | Specific Heat (212 °F / 100°C |
Metric | 2.80 Mg/m³ | 532°C – 635 °C | 960 J/kg-°K |
Mechanical Properties of Aluminium Alloy 7075 Pipes :
Properties | Tensile strength | Yield strength | Hardness Brinell | Elongation |
Metric | 83-73 Ksi | 73-63 Ksi | 150 | 13-11% |
