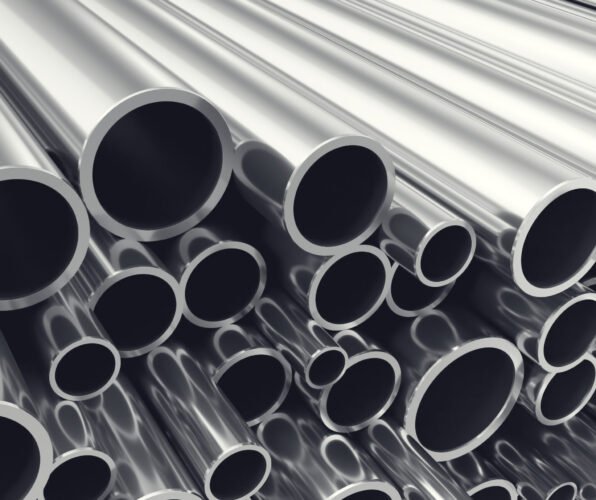

Pipes and Tubes Supplier, Distributor, Stockist, and Exporter in India - Deltron Alloys
Deltron Alloys stands as India’s leading Distributor and Supplier of Pipes and Tubes. Our ASTM Pipes and Tubes segment ranks among the most sought-after products in the Metal Market. Pipes and Tubes are available in diverse sizes, configurations, and dimensions, and we possess the capability to tailor them to precise customer specifications. We ensure the timely delivery of Pipes and Tubes in the required quantities and with impeccable quality to cater to the diverse needs of numerous industrial sectors.
ASTM Pipes & Tubes, Suppliers of Pipes & Tubes, ANSI Pipes and Tubes Stockist & Dealers in India
Deltron Alloys is unwavering in its commitment to meeting the exacting demands of various industries. Our ANSI Pipes and Tubes are engineered with added advantages and functionalities to fulfil the specific requirements of industrial applications. Stringent quality checks, including both destructive and non-destructive inspections, are conducted to ensure consistent quality and compliance. Our product range encompasses various types of Pipes and Tubes, including Erw Pipes, Welded Pipes, Seamless Pipes, and more. Additionally, we have earned recognition as a major supplier of Buttweld Fittings.
Applications and Utilisation of Pipes & Tubes
- Pipeline Engineering
- Oil & Gas Industry
- Mechanical Engineering
- Plant Engineering
- Marine Industry
- Chemical Industry
- Petrochemical Industry
- Power Industry
- Aerospace
- Water Treatment Plants
- Water Desalination Plants
Additional Information about Pipes & Tubes
- Payment Modes for Pipes & Tubes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and other accepted methods.
- Packaging of Pipes & Tubes: Our packaging ensures the safe and secure delivery of Pipes & Tubes, meeting the high expectations of our clients. Additional packaging charges may apply.
- Port of Dispatch for Pipes & Tubes: Mumbai or Nhava Sheva ports in the Maharashtra state of India.
- Tax for Pipes & Tubes: 18% GST.
Specifications | ASTM A/ASME SA213, A249, A269, A312, A240 |
Standard | ASTM, ASME |
Grade | 304, 304L, 304H, 316, 316L, 316 TI, 317, 317L, 347,347H, 309, 310, 310S, 409, 410, 446, DUPLEX, SUPER DUPLEX. |
Length | Single Random, Double Random & Required Length |
Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Types | Seamless / ERW / EFW / Welded / Fabricated / LSAW Pipes |
Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pancake Coils, Hydraulic Tubes |
End | Plain End, Beveled End, Thread End, Burr Removed |
Equivalent Grades for Pipes & Tubes :
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
304L | 1.4306/1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
304H | 1.4301 | S30409 | SUS 304H | – | – | – | – |
316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
347 | 1.455 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
347H | 1.4961 | S34709 | SUS 347H | – | – | – | X6CrNiNb18-12 |
309 | 1.4828 | S30900 | SUH309 | 309S24 | 20KH20N14S2 | Z17CNS20-12 | X15CrNiSi20-12 |
310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
310S | 1.4841/1.4845 | S31008 | SUS 310S | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
409 | 1.4512 | S40900 | SUH 409 | 409S19 | – | – | – |
410 | 1.4006 | S41000 | SUS 410 | 410S21 | 12Kh13 | Z12C13 | X12Cr13 |
446 | 1.4762 | S44600 | SUS 446 | – | – | – | X10CrAlSi25 |
Duplex 2205 Pipe | 1.4462 / 1.4462 | S31803 / S32205 | – | – | – | – | – |
ASTM A790 UNS S31803 | 1.4462 | S31803 | – | – | – | – | – |
ASTM A790 UNS S32205 | 1.4462 | S32205 | – | – | – | – | – |
ASTM A790 UNS S32750 | 1.441 | S32750 | – | – | – | – | – |
ASTM A790 UNS S32760 | 1.441 | S32760 | – | – | – | – | – |
Chemical Composition of Pipes & Tubes :
Standard | C | Mn | Si | P | S | Ni | Cr | N | Mo | Fe |
304 | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 8.0 – 10.5 | 18.0 – 20.0 | 0.1 max | – | – |
304L | 0.03 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 8.0 – 12.0 | 18.0 – 20.0 | 0.1 max | – | – |
304H | 0.04 – 0.10 | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 8.0 – 10.5 | 18.0 – 20.0 | – | – | – |
316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.30 max | 11.0 – 14.0 | 16.0 – 18.0 | – | 2.0 – 3.0 | – |
316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.30 max | 10.0 – 14.0 | 16.0 – 18.0 | – | 2.0 – 3.0 | – |
316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 10.00 – 14.00 | 16.00 – 18.00 | 68.395 min | 2.00 – 3.00 | – |
317 | 0.08 max | 2.0 max | 1.0 max | 0.04 max | 0.03 max | 11.0 – 14.0 | 18.0 – 20.0 | – | 3.0 – 4.0 | – |
317L | 0.08 max | 2.0 max | 1.0 max | 0.04 max | 0.03 max | 11.0 – 15.0 | 18.0 – 20.0 | – | 3.0 – 4.0 | – |
347 | 0.08 max | 2.0 max | 1.0 max | 0.04 max | 0.30 max | 9.0 – 13.0 | 17.0 – 20.0 | 8xCmin | – | – |
347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.30 max | 9.0 – 13.0 | 17.0 – 19.0 | 1.0 max | – | – |
309 | 0.2 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 12-15 | 22-24 | – | – | – |
310 | 0.25 max | 2.0 max | 1.50 max | 0.045 max | 0.03 max | 19.0 – 22.0 | 24.0 – 26.0 | – | – | Balance |
310S | 0.08 max | 2.0 max | 1.50 max | 0.045 max | 0.03 max | 19.0 – 22.0 | 24.0 – 26.0 | – | – | – |
409 | 0.03 max | 1.0 max | 1.0 max | 0.04 max | 2.0 max | 0.5 max | 10.5 – 11.7 | – | – | – |
410 | 0.15 max | 1.0 max | 1.0 max | 0.04 max | 0.03 max | 0.75 max | 13.5 max | – | – | – |
446 | 0.20 max | 1.50 max | 1.0 max | 0.040 max | 0.030 max | 0.25 max | 23.0 – 27.0 | – | – | – |
Duplex 2205 Pipe | 1.0 max | 3.0 – 3.5 | 2.0 max | 0.02 max | 0.14 – 0.2 | Balance | 4.5 – 6.5 | 0.03 max | 22.0 – 23.0 | 0.03 max |
ASTM A790 UNS S31803 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 4.50 – 6.50 | 21.0 – 21.30 | 0.08 – 0.20 | 2.50 – 3.50 | – |
ASTM A790 UNS S32205 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 4.50 – 6.50 | 22.0 – 23.0 | 3.0 – 3.5 | 0.14 – 0.20 | – |
ASTM A790 UNS S32750 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 4.50 – 6.50 | 21.0 – 23.0 | 0.8 – 0.20 | 2.50 – 3.50 | 63.54 min |
ASTM A790 UNS S32760 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 4.50 – 6.50 | 22.0 – 23.0 | 0.14 – 0.20 | 3.0 – 3.5 | 63.72 min |
Mechanical Properties of Pipes & Tubes :
Standard | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | Density | Melting Point | |
Rockwell B (HR B) max | Brinell (HB) max | ||||||
304 | 515 | 205 | 40 | 92 | 201 | 8.0 g/cm3 | 1400 °C (2550 °F) |
304L | 485 | 170 | 40 | 92 | 201 | 8.0 g/cm3 | 1400 °C (2550 °F) |
304H | 515 | 205 | 40 | 92 | 201 | 8.0 g/cm3 | 1400 °C (2550 °F) |
316 | 515 | 205 | 35 | – | – | – | – |
316L | 485 | 170 | 35 | – | – | – | – |
316Ti | 515 | 205 | 35 | – | – | 8.0 g/cm3 | 1399 °C (2550 °F) |
317 | 515 | 205 | 35 | 75 | 205 | – | – |
317L | 515 | 205 | 35 | 75 | 205 | – | – |
347 | 515 | 205 | 40 | 92 | 201 | – | – |
347H | 515 | 205 | 40 | 92 | 201 | – | – |
309 | 620 | 310 | 30 | – | – | – | – |
310 | 515 | 205 | 35 | – | – | 8.0 g/cm3 | 1454 °C (2650 °F) |
310S | 515 | 205 | 35 | 90 | – | – | – |
409 | 380 | 170 | 20 | 88 | 0.5 | ||
410 | 480 | 275 | 16 | 95 | 201 | – | – |
446 | 550 | 345 | 20 | 51.1 | 159 | – | – |
Duplex 2205 Pipe | 800 | 550 | 15 | – | – | 7.8 g/cm3 | 1350 °C (2460 °F) |
ASTM A790 UNS S31803 | 620 | 450 | 25 | 30 | 290 | – | – |
ASTM A790 UNS S32205 | 655 | 450 | 25 | 30 | 290 | – | – |
ASTM A790 UNS S32750 | 800 | 550 | 15 | – | – | 7.8 g/cm3 | 1350 °C (2460 °F) |
ASTM A790 UNS S32760 | 730 – 930 | 530 | 25 | – | – | 7.8 g/cm3 | 1350 °C (2460 °F) |
Codes and Standards | ANSI, ASME, ASTM, API, SAE, BS, AGA, AWWA, ISO, DIN |
Available Grades | ASTM A106 Gr. A, B, C , A333 Gr. 3, 6, A53 Gr. A, B, A210 Gr. A-1, BS 3059 Pt – 1 & 2, SA 179, IS-1239 Part 1, IS:3589 Gr. 330, 410, API 5L Gr. B, X42, X52, X56, X60 |
Dimensions | ASME/ ANSI B36.10 / 19 |
Standard Size | 1/2” NB to 36” NB (LSAW, SSAW, HSAW) / (DN15- DN900) |
Wall Thickness | 3-12mm |
Pipe schedules | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS Supplier |
Producing techniques | Seamless / ERW / Welded / Fabricated / CDW / EFW |
Available Shapes | Round, Half Round, Square, Rectangular or Custom shape CS Pipes manufacturer and supplier |
Length | 3 to Max18 Meters or custom |
Surface Finish | Epoxy, Varnish, Black painting, FBE, 3PE, etc. |
Pipe End | Beveled End, Plain End, Treaded |
Equivalent Grades for Pipes & Tubes :
STANDARD | ASME | DIN | JIS G 3456 | BS | ABS | NK | – | – | – |
ASTM A106 Gr. A | SA106 A | 17175 st35.8 | STPT 370 | 3602 P1 360 | ABS 4 | KSTPT 38 | – | – | – |
ASTM A106 Gr. B | SA106 B | 17175 st45.8 | STPT 410 | 3602 P1 430 | ABS 5 | KSTPT 42 | – | – | – |
ASTM A106 Gr. C | SA106 C | 17175 17Mn4 | STPT 480 | 3602 P1 500Nb | – | KSTPT 49 | – | – | – |
STANDARD | ASME | DIN | NFA | BS | – | – | – | – | – |
ASTM A333 Gr. 3 | SA333 Gr. 3 | 1.0308 | A333 Gr. 3 | 3606 Gr. 3 | – | – | – | – | – |
ASTM A333 Gr. 6 | SA333 Gr. 6 | – | A333 Gr. 6 | 3606 Gr. 6 | – | – | – | – | – |
STANDARD | ASME | DIN | JIS G 3454 | BS | ABS | NK | LRS | ISO | DNV |
ASTM A53 Gr. A | SA53 A | 1626 ust37.0 | STPG 370 | 3601 320 | ABS 2 | KSTPG 38 | Sec 2 320 | 2604 II TW4 | Sec 4-B-TS360 |
ASTM A53 Gr. B | SA53 B | 1626 st44.0 | STPG 410 | 3601 430 | ABS 3 | KSTPG 42 | Sec 2 410 | 2604 II TS9 | Sec 4-B-TS410 |
STANDARD | ASTM | DIN | NFA | BS | – | – | – | – | – |
BS 3059 Pt – 1 Gr. 320 | ASME A 369 Grade FPA | DIN 17175 Grade St 35.8 | ASTM A 369 Grade FPA | NFA A 49-213 Grade TU 37-c | – | – | – | – | – |
BS 3059 Pt – 2 Gr. 360 | ASME SA 106 Grade B | DIN 17175 Grade St 35.8 | ASTM A106 Grade B | NFA A 49-215 Grade TU 37-c | – | – | – | – | – |
BS 3059 Pt – 2 Gr. 440 | ASME SA 106 Grade B | DIN 17175 Grade St 45.8 | ASTM A106 Grade B | NFA A 49-213 Grade TU 42-c | – | – | – | – | – |
STANDARD | UNS | DIN | JIS | BS | – | – | – | – | – |
SA 179 | K01200 | 1629 | D3563 / G3461 | 3606 | – | – | – | – | – |
Chemical Composition of Pipes & Tubes :
Standard | C | Mn | Si | P | S | Ni | – | – | – | – |
ASTM A106 Gr. A | 0.25 max | 0.27 – 0.93 | 0.1 min | 0.025 max | 0.025 max | – | – | – | – | – |
ASTM A106 Gr. B | 0.3 max | 0.29 – 1.06 | 0.1 min | 0.025 max | 0.025 max | – | – | – | – | – |
ASTM A106 Gr. C | 0.35 max | 0.29 – 1.06 | 0.1 min | 0.025 max | 0.025 max | – | – | – | – | – |
ASTM A333 Gr. 3 | 0.19 max | 0.31 – 0.64 | 0.18 – 0.37 | 0.025 max | 0.025 max | 3.18 – 3.82 | – | – | – | – |
ASTM A333 Gr. 6 | 0.3 max | 0.29 – 1.06 | 0.10 min | 0.025 max | 0.025 max | – | – | – | – | – |
Standard | C | Mn | Si | P | S | Ni | Cr | Cu | Mo | V |
ASTM A53 Gr. A | 0.25 max | 0.95 max | – | 0.05 max | 0.045 max | 0.4 max | 0.4 max | 0.4 max | 0.15 max | 0.08 max |
ASTM A53 Gr. B | 0.3 max | 1.2 max | – | 0.05 max | 0.045 max | 0.4 max | 0.4 max | 0.4 max | 0.15 max | 0.08 max |
Standard | C | Mn | Si | P | S | – | – | – | – | – |
ASTM A210 Gr. A-1 | 0.27 max | 0.93 max | 0.1 min | 0.035 max | 0.035 max | – | – | – | – | – |
BS 3059 Pt – 1 Gr. 320 | 0.16 max | 0.30 – 0.70 | 0.10 – 0.35 | 0.04 max | 0.04 max | – | – | – | – | – |
BS 3059 Pt – 2 Gr. 360 | 0.17 max | 0.40 – 0.80 | 0.10 – 0.35 | 0.035 max | 0.035 max | – | – | – | – | – |
BS 3059 Pt – 2 Gr. 440 | 0.12 – 0.18 | 0.90 – 1.20 | 0.10 – 0.35 | 0.035 max | 0.035 max | – | – | – | – | – |
SA 179 | 0.06 – 0.18 | 0.27 – 0.63 | – | 0.035 max | 0.035 max | – | – | – | – | – |
IS-1239 Part 1 | 0.2 max | 1.3 max | – | 0.04 max | 0.04 max | – | – | – | – | – |
IS:3589 Gr. 330 | 0.16 max | 1.2 max | – | 0.04 max | 0.04 max | – | – | – | – | – |
IS:3589 Gr. 410 | 0.2 max | 1.3 max | – | 0.04 max | 0.04 max | – | – | – | – | – |
Standard | PSL | C | Mn | P | S | – | – | – | – | – |
API 5L Gr. B | PSL – 1 | 0.26 max | 1.2 max | 0.03 max | 0.03 max | – | – | – | – | – |
PSL – 2 | 0.22 max | 1.3 max | 0.25 max | 0.015 max | – | – | – | – | – | |
API 5L Gr. X42 | PSL – 1 | 0.26 max | 1.3 max | 0.03 max | 0.03 max | – | – | – | – | – |
PSL – 2 | 0.22 max | 1.4 max | 0.25 max | 0.015 max | – | – | – | – | – | |
API 5L Gr. X52 | PSL – 1 | 0.26 max | 1.4 max | 0.03 max | 0.03 max | – | – | – | – | – |
PSL – 2 | 0.22 max | 1.4 max | 0.25 max | 0.015 max | – | – | – | – | – | |
API 5L Gr. X56 | PSL – 1 | 0.26 max | 1.4 max | 0.03 max | 0.03 max | – | – | – | – | – |
PSL – 2 | 0.22 max | 1.4 max | 0.25 max | 0.015 max | – | – | – | – | – | |
API 5L Gr. X60 | PSL – 1 | 0.26 max | 1.4 max | 0.03 max | 0.03 max | – | – | – | – | – |
PSL – 2 | 0.22 max | 1.45 max | 0.25 max | 0.015 max | – | – | – | – | – |
Mechanical Properties of Pipes & Tubes :
Standard | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HRB |
ASTM A106 Gr. A | 330 | 205 | 35 | – |
ASTM A106 Gr. B | 415 | 240 | 30 | – |
ASTM A106 Gr. C | 485 | 275 | 30 | – |
ASTM A333 Gr. 3 | 448.16 | 241.32 | 30 | – |
ASTM A333 Gr. 6 | 448.16 | 241.32 | 30 | – |
ASTM A53 Gr. A | 330 | 205 | – | – |
ASTM A53 Gr. B | 415 | 240 | – | – |
ASTM A210 Gr. A-1 | 415 | 255 | 30 | 79 |
BS 3059 Pt – 1 Gr. 320 | 320 – 480 | – | 25 | – |
BS 3059 Pt – 2 Gr. 360 | 360 – 500 | 235 | 24 | – |
BS 3059 Pt – 2 Gr. 440 | 440 – 580 | 245 | 21 | – |
SA 179 | 325 | 180 | 35 | – |
IS-1239 Part 1 | 320 | – | 12 – 25 | – |
IS:3589 Gr. 330 | 330 | 195 | 20 | – |
IS:3589 Gr. 410 | 410 | 235 | 18 | – |
API 5L Gr. B | 415 | 245 | – | – |
API 5L Gr. X42 | 415 | 290 | – | – |
API 5L Gr. X52 | 460 | 360 | – | – |
API 5L Gr. X56 | 490 | 390 | – | – |
API 5L Gr. X60 | 519 | 415 | – | – |
ASTM / ASME Standard | ASTM A335 /ASME SA 335 / ASTM A691/ASME SA 691/ API |
Grade | SA/A 213 T11, T12, T22, T5, T9, T91, SA/A 335-P11, P12, P22, P5, P9, P91, SA 691 1/2 CR, 1CR, 1 1/4 CR, 5 CR, 9 CR, 91CR, 15CDV6 & AISI 4130 |
Specification | Outside Diameter OD: nominal ~ 60” Wall Thickness: up through 4” |
Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules, upto 12mm thk Manufacturer and supplier in India |
Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | Round, Rectangular, Square, Hydraulic, Oval, U Shape Manufacturer and supplier in India |
Coating Standard | DIN 30671, DIN 30670, DIN 30678, SY/T0413-2002 etc. |
Coating Thickness | Three Layer Polyethylene Coating (2 – 4.5mm) |
End | Plain End, Beveled End, Thread End, Burr Removed |
Equivalent Grades for Pipes & Tubes :
STANDARD | DIN | EN | BS | NFA | ASTM | ASME | – |
ASTM A213 T5 | DIN Wbl- 007/2* Grade 12 CrMo 19 5 | EN X11CrMo5 Grade 10216 – 2 | – | ASTM A213 Grade T5 | ASME SA 213 Grade T5 | UNI 17102 | – |
ASTM A213 T9 | DIN Wbl. 109* Grade X12CrMo9-1 | EN X11CrMo9-1 Grade 10216 – 2 | NFA A 49-213 Grade TU Z 10 CD 09 | ASTM A213 Grade T9 | ASME SA 213 Grade T9 | UNI 17116 | – |
ASTM A213 T11 | – | – | – | ASTM A213 Grade T11 | ASME SA 213 Grade T11 | – | – |
ASTM A213 T12 | DIN 17175 Grade 13 CrMo 44 | EN 13CrMo4-5 Grade 10216 – 2 | NFA A 49-213 Grade TU 13 CD 4-04 | ASTM A213 Grade T12 | ASME SA 213 Grade T12 | UNI 14CrMo3 | – |
ASTM A213 T22 | DIN 17175 Grade 10CrMo9-10 | – | NFA A 49-213 Grade TU 10 CD 9-10 | ASTM A213 Grade T22 | ASME SA 213 Grade T22 | – | – |
ASTM A213 T91 | DIN 17179 Grade X10CrMoVNb9 | – | NFA A 49-213 Grade TU Z 10 CDVN | ASTM A213 Grade T91 | ASME SA 213 Grade T91 | – | – |
STANDARD | ASTM A335 Gr. | UNS | JIS | BS | GOST | AFNOR | EN |
ASTM A335 P5 | P5 | K41545 | – | – | – | – | – |
ASTM A335 P9 | P9 | S50400 | SCM440 | 709M40 | 38ChM | 42CD4 | 1.7225 |
ASTM A335 P11 | P11 | K11597 | SCM435 | 708A37 | 35ChM | 35CD4 | 1.7228 |
ASTM A335 P12 | P12 | K11562 | SCM420 | 709M40 | 20ChM | 20CD4 | 1.7218 |
ASTM A335 P22 | P22 | K21590 | SCM822 | 905M39 | 20Ch2N4A | 25CD4 | 1.7755 |
ASTM A335 P91 | P91 | K91560 | – | – | – | – | – |
STANDARD | ASTM Specification | Type of Steel | – | – | – | – | |
Number | Grade | – | – | – | – | ||
ASTM A691 1/2 CR | A387/A387M | 2 | 1/2 % chromium, 1/2 % molybdenum steel | – | – | – | – |
ASTM A691 1 CR | A387/A387M | 12 | 1 % chromium, 1/2 % molybdenum steel | – | – | – | – |
ASTM A691 1 1/4 CR | A387/A387M | 11 | 1 1/4 % chromium, 1/2 % molybdenum steel | – | – | – | – |
ASTM A691 5 CR | A387/A387M | 5 | 5 % chromium, 1/2 % molybdenum steel | – | – | – | – |
ASTM A691 9 CR | A387/A387M | 9 | 9 % chromium, 1 % molybdenum steel | – | – | – | – |
ASTM A691 91 CR | A387/A387M | 91 | 9 % chromium, 1 % molybdenum, vanadium, columbium | – | – | – | – |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
15CDV6 | 1.7734 | S32550 | SCM435 | 4430 | 12CrMoV6-9 | X6CrMoV5-9 | – |
AISI 4130 | 1.7218 | G41300 | G4105 | 970 | – | – | 25CrMo4 |
Chemical Composition of Pipes & Tubes :
Standard | C | Mn | Si | P | S | Cr | Mo | V | – |
ASTM A213 T5 | 0.15 max | 0.30 – 0.60 | 0.50 max | 0.025 max | 0.025 max | 4.0 – 6.0 | 0.45 – 0.65 | – | – |
ASTM A213 T9 | 0.15 max | 0.30 – 0.60 | 0.25 – 1.00 | 0.025 max | 0.025 max | 8.0 – 10.0 | 0.90 – 1.10 | – | – |
ASTM A213 T11 | 0.05 – 0.15 | 0.30 – 0.60 | 0.50 – 1.00 | 0.025 max | 0.025 max | – | 0.44 – 0.65 | – | – |
ASTM A213 T12 | 0.05 – 0.15 | 0.30 – 0.61 | 0.50 max | 0.025 max | 0.025 max | 0.8 – 1.25 | 0.44 – 0.65 | – | – |
ASTM A213 T22 | 0.05 – 0.15 | 0.30 – 0.60 | 0.50 max | 0.025 max | 0.025 max | 1.9 – 2.6 | 0.87 – 1.13 | – | – |
ASTM A213 T91 | 0.08 – 0.12 | 0.30 – 0.60 | 0.20 – 0.50 | 0.02 max | 0.01 max | 8.0 – 9.5 | 0.85 – 1.05 | – | – |
ASTM A335 P5 | 0.015 max | 0.30 – 0.60 | 0.50 max | 0.025 max | 0.025 max | 4.0 – 6.0 | 0.44 – 0.65 | – | – |
ASTM A335 P9 | 0.015 max | 0.30 – 0.60 | 0.50 max | 0.025 max | 0.025 max | 8.0 – 10.0 | 0.44 – 0.65 | – | – |
ASTM A335 P11 | 0.05 – 0.15 | 0.30 – 0.61 | 0.50 – 1.00 | 0.025 max | 0.025 max | 1.0 – 1.50 | 0.44 – 0.65 | – | – |
ASTM A335 P12 | 0.05 – 0.15 | 0.30 – 0.60 | 0.50 max | 0.025 max | 0.025 max | 0.8 – 1.25 | 0.44 – 0.65 | – | – |
ASTM A335 P22 | 0.05 – 0.15 | 0.30 – 0.60 | 0.50 max | 0.025 max | 0.025 max | 1.9 – 2.6 | 0.87 – 1.13 | – | – |
ASTM A335 P91 | 0.08 – 0.12 | 0.30 – 0.60 | 0.20 – 0.50 | 0.02 max | 0.01 max | 8.0 – 9.5 | 0.85 – 1.05 | – | – |
ASTM A691 1/2 CR | 0.05 – 0.15 | 0.30 – 0.60 | 0.5 max | 0.025 max | 0.025 max | 2.0 – 2.50 | 0.90 – 1.10 | – | – |
ASTM A691 1 CR | 0.05 – 0.17 | 0.40 – 0.65 | 0.15 – 0.40 | 0.025 max | 0.025 max | 0.8 – 1.15 | 0.45 – 0.65 | – | – |
ASTM A691 1 1/4 CR | 0.05 – 0.17 | 0.40 – 0.65 | 0.50 – 0.80 | 0.025 max | 0.025 max | 1.0 – 1.50 | 0.45 – 0.65 | – | – |
ASTM A691 5 CR | 0.15 max | 0.30 – 0.60 | 0.5 max | 0.025 max | 0.025 max | 4.0 – 6.0 | 0.45 – 0.65 | – | – |
ASTM A691 9 CR | 0.15 max | 0.30 – 0.60 | 1 max | 0.025 max | 0.025 max | 8.0 – 10.0 | 0.90 – 1.10 | 0.04 | – |
ASTM A691 91 CR | 0.08 – 0.12 | 0.30 – 0.60 | 0.20 – 0.50 | 0.02 max | 0.01 max | 8.0 – 9.5 | 0.85 – 1.05 | 0.18 – 0.25 | – |
15CDV6 | 0.16 max | 1.20 max | 0.40 max | 0.030 max | 0.030 max | 1.10 max | 0.05 max | – | – |
Standard | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
AISI 4130 | 0.28 – 0.33 | 0.40 – 0.60 | 0.15 – 0.35 | 0.035 max | 0.025 max | 8.0 – 10.0 | 0.15 – 0.25 | 0.50 max | 97.3 – 98.22 |
Mechanical Properties of Pipes & Tubes :
Standard | Tensile Strength ksi [MPa] min | Yield Strength 0.2% Proof ksi [MPa] min | Elongation (% in 50mm) min | Hardness | |
Brinell (HB) max | Rockwell B (HR B) max | ||||
ASTM A213 T5 | 60 [415] | 30 [205] | 30 | 163 HB | – |
ASTM A213 T9 | 60 [415] | 30 [205] | 30 | 179 HBW | 89 HRB |
ASTM A213 T11 | 60 [415] | 30 [205] | 30 | 179 HBW | 89 HRB |
ASTM A213 T12 | 60 [415] | 32 [220] | 30 | 163 HBW | 85 HRB |
ASTM A213 T22 | 60 [415] | 30 [205] | 30 | 163 HB | – |
ASTM A213 T91 | 85 [585] | 60 [415] | 20 | 190 to 250 HBW | 90 HRB to 25 |
Standard | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB | – |
ASTM A335 P5 | 415 min | 205 min | 30 min | – | – |
ASTM A335 P9 | 415 min | 205 min | 30 min | – | – |
ASTM A335 P11 | 415 min | 205 min | 30 min | – | – |
ASTM A335 P12 | 415 min | 220 min | 30 min | – | – |
ASTM A335 P22 | 415 min | 205 min | 30 min | – | – |
ASTM A335 P91 | 585 min | 415 min | 20 min | 250 max | – |
Standard | Tensile Strength | Yield Strength (0.2%Offset) | Elongation % | Hardness, HB | Reduc’n of Area* |
ASTM A691 1/2 CR | 415 – 585 | 205 min | 18 | 201 max | 40% min |
ASTM A691 1 CR | 380 – 550 | 230 min | 22 | 201 max | – |
ASTM A691 1 1/4 CR | 415 – 585 | 240 min | 22 | 201 max | – |
ASTM A691 5 CR | 415 – 585 | 205 min | 18 | 225 max | 40% min |
ASTM A691 9 CR | 415 – 585 | 205 min | 18 | 241 max | 40% min |
ASTM A691 91 CR | 415 – 585 | 205 min | 18 | 241 max | 40% min |
15CDV6 | 1373 | 1187 | 13 | 297HBW | 57% |
Standard | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Density | Melting Point |
AISI 4130 | 560 | 460 | 20 | 0.28 | 2580 |
ASTM / ASME Standard | ASTM B161 / ASTM B167 / ASTM B407 / ASTM B622 / ASTM B165 / ASTM A790 |
Grade | Nickel 200, Nickel 201, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Hastelloy C276, Hastelloy C22, Monel 400, Monel K500, Duplex: UNS S31803, UNS S32205 & SAF 2205, Super Duplex Steel: UNS S32750, UNS S32950, UNS S32760, SAF 2507, ZERON 100 |
Length | Single Random, Double Random & Cut Length. |
Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | Round, Square, Rectangular, Hydraulic Etc |
End | Bevel large end, Bevel both ends, Bevel one end, Bevel small end, Threaded Both Ends, Plain Both Ends, Threaded One End, Plain One End, Beveled One End, Beveled end, |
Equivalent Grades for Pipes & Tubes :
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | – |
Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 | – |
Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 | – |
Inconel 600 | 2.4668 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe | – |
Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | – |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800H | 1.4859 / 1.4876 | N08811 | NCF 800H | NA 15(H) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Incoloy 800HT | 1.4958 / 1.4876 | N08810 | NCF 800HT | NA 15(HT) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
STANDARD | WERKSTOFF NR. | UNS | JIS | DIN | GOST | ISO | EN | OR |
Hastelloy C276 | 2.4819 | N10276 | NW 0276 | 17750 | ХН65МВУ | 6208 | NiMo16Cr15W | ЭП760 |
Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | – | – | NiCr21Mo14W | – |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | |
Monel 400 | 2.436 | N04400 | NW 4400 | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 | |
Monel K500 | 2.4375 | N05500 | – | – | – | – | – | – |
STANDARD | WERKSTOFF NR. | UNS | PIPE STANDARD | – | – | – | – | – |
SAF 2205 | 1.4462 / 1.4462 | S31803 / S32205 | Duplex 2205 Pipe | – | – | – | – | – |
UNS S31803 | 1.4462 | S31803 | – | – | – | – | – | – |
UNS S32205 | 1.4462 | S32205 | – | – | – | – | – | – |
SAF 2507 | 1.441 | S32750 | – | – | – | – | – | – |
UNS S32750 | 1.441 | S32750 | – | – | – | – | – | – |
UNS S32760 | 1.441 | S32760 | – | – | – | – | – | – |
UNS S32950 | 1.441 | S32950 | – | – | – | – | – | – |
ZERON 100 | 1.4501 | S32760 | Super Duplex Zeron 100 | – | – | – | – | – |
Chemical Composition of Pipes & Tubes :
Standard | C | Mn | Si | S | Ni | Fe | Cu | Cr | – | – | – | – |
Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 99.0 min | 0.40 max | 0.25 max | – | – | – | – | |
Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 99.0 min | 0.40 max | 0.25 max | – | – | – | – | |
Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 72.00 min | 6.0 – 10.0 | 0.50 max | 14.0 – 17.0 | – | – | – | – |
Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 58.0 min | 5.0 max | – | 20.0 – 23.0 | – | – | – | – |
Standard | C | Mn | Si | S | Ni | Fe | Cu | Cr | Al | Ti | – | – |
Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 30.0 – 35.0 | 39.50 min | 0.75 max | 19.0 – 23.0 | 0.15 – 0.60 | 0.15 – 0.60 | – | – |
Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 30.0 – 35.0 | 39.50 min | 0.75 max | 19.0 – 23.0 | 0.15 – 0.60 | 0.15 – 0.60 | – | – |
Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 30.0 – 35.0 | 39.50 min | 0.75 max | 19.0 – 23.0 | 0.15 – 0.60 | 0.15 – 0.60 | – | – |
Incoloy 825 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 30.0 – 35.0 | 39.50 min | 0.75 max | 19.0 – 23.0 | 0.15 – 0.60 | 0.15 – 0.60 | – | – |
Standard | C | Mn | Si | P | S | Ni | Fe | Co | Cr | Mo | – | – |
Hastelloy C276 | 0.010 max | 1.00 max | 0.08 max | 0.04 max | 0.03 max | 50.99 min | 4.0 – 7.0 | 2.50 max | 14.50 – 16.50 | 15.0 – 17.0 | – | – |
Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 0.02 max | Balance | 2.0 – 6.0 | 2.5 max | 20.0 – 22.5 | 12.5 – 14.5 | – | – |
Standard | C | Mn | Si | S | Ni | Fe | Cu | – | – | – | – | – |
Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 63.00 min | 2.50 max | 28.0 – 34.0 | – | – | – | – | – |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 63.00 min | 0.5 – 2.0 | 27.0 – 33.0 | – | – | – | – | – |
Standard | C | Mn | Si | P | S | Ni | Cr | N | Mo | Fe | Cu | – |
SAF 2205 | 1.0 max | 3.0 – 3.5 | 2.0 max | 0.02 max | 0.14 – 0.2 | Balance | 4.5 – 6.5 | 0.03 max | 22.0 – 23.0 | 0.03 max | – | – |
UNS S31803 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 4.50 – 6.50 | 21.0 – 21.30 | 0.08 – 0.20 | 2.50 – 3.50 | – | – | – |
UNS S32205 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 4.50 – 6.50 | 22.0 – 23.0 | 3.0 – 3.5 | 0.14 – 0.20 | – | – | – |
SAF 2507 | 0.03 max | 1.20 max | 0.8 max | 0.035 max | 0.02 max | 6.0 – 8.0 | 24.0 – 26.0 | 3.0 – 5.0 | 0.24 – 0.32 | Bal. | 0.5 | – |
UNS S32750 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 4.50 – 6.50 | 21.0 – 23.0 | 0.8 – 0.20 | 2.50 – 3.50 | 63.54 min | – | – |
UNS S32760 | 0.03 max | 2.0 max | 1.0 max | 0.03 max | 0.02 max | 4.50 – 6.50 | 22.0 – 23.0 | 3.0 – 3.5 | 0.14 – 0.20 | 63.72 min | – | – |
UNS S32950 | 0.03 max | 1.20 max | 0.8 max | 0.035 max | 0.02 max | 6.0 – 8.0 | 24.0 – 26.0 | 3.0 – 5.0 | 0.24 – 0.32 | – | 0.5 | – |
Standard | C | Mn | Si | P | S | Ni | Cr | Mo | N | Fe | Cu | W |
ZERON 100 | 0.030 max | 1.0 max | 1.0 max | 0.03 max | 0.01 max | 6.0 – 8.0 | 24.0 – 26.0 | 3.0 – 4.0 | 0.2 – 0.3 | Bal. | 0.50 – 1.0 | 0.5 – 1.0 |
Mechanical Properties of Pipes & Tubes :
Standard | Tensile Strength | Yield Strength (0.2%Offset) | Elongation % | Density | Melting Point | – | – |
Nickel 200 | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 | 8.9 g/cm3 | 1446 °C (2635 °F) | – | – |
Nickel 201 | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 | 8.9 g/cm3 | 1446 °C (2635 °F) | – | – |
Inconel 600 | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 | 8.47 g/cm3 | 1413 °C (2580 °F) | – | – |
Inconel 625 | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 | 8.4 g/cm3 | 1350 °C (2460 °F) | – | – |
Incoloy 800 | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 | 7.94 g/cm3 | 1385 °C (2525 °F) | – | – |
Incoloy 800H | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 | 7.94 g/cm3 | 1385 °C (2525 °F) | – | – |
Incoloy 800HT | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 | 7.94 g/cm3 | 1385 °C (2525 °F) | – | – |
Incoloy 825 | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 | 7.94 g/cm3 | 1385 °C (2525 °F) | – | – |
Hastelloy C276 | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 | 8.89 g/cm3 | 1370 °C (2500 °F) | – | – |
Hastelloy C22 | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 | 8.69 g/cm3 | 1399 °C (2550 °F) | – | – |
Monel 400 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 | 8.0 g/cm3 | 1399 °C (2550 °F) | – | – |
Monel K500 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 | 8.0 g/cm3 | 1399 °C (2550 °F) | – | – |
Standard | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Density | Melting Point | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||||
SAF 2205 | 800 | 550 | 15 | 7.8 g/cm3 | 1350 °C (2460 °F) | – | – |
UNS S31803 | 620 | 450 | 25 | – | – | 30 | 290 |
UNS S32205 | 655 | 450 | 25 | – | – | 30 | 290 |
SAF 2507 | 800 | 550 | 15 | 7.8 g/cm3 | 1350 °C (2460 °F) | ||
UNS S32750 | 800 | 550 | 15 | 7.8 g/cm3 | 1350 °C (2460 °F) | – | – |
UNS S32760 | 730 – 930 | 530 | 25 | 7.8 g/cm3 | 1350 °C (2460 °F) | – | – |
UNS S32950 | 795 | 550 | 15 | – | – | 32 | 310 |
Standard | Tensile Strength, min, ksi, [MPa] | Yield Strength, min, ksi [MPa] | Elongation in 2 in. or 50mm, min, % | Hardness, max | – | – | – |
HBW | HRC | – | – | ||||
ZERON 100 | 109 ksi [752 MPa] | 80 ksi [552 MPa] | 25 | – | 28 | – | – |
Grade | Cupro Nickel 90 / 10, Cupro Nickel 70 / 30 |
Form | Hollow, Straight, Square, Hydraulic, Round, Rectangular Pipes Etc. |
Sizes | Copper Nickel Round Pipe |
Hardness | 1/6, 1/8, 3/8, 1/4, 1/2, full hard, soft, etc |
Cupro Nickel Pipe End | Plain End, Beveled End, Treaded. |
Copper Nickel Pipe Length | Single Random, Double Random & Cut Length. |
Copper Nickel Pipe Finish | Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required. |
Equivalent Grades for Pipes & Tubes :
STANDARD | WERKSTOFF NR. | UNS |
Cupro Nickel 90 / 10 | 2.0872 | C70600 |
Cupro Nickel 70 / 30 | 2.0882 | C71500 |
Chemical Composition of Pipes & Tubes :
Standard | C | Mn | Si | S | Cu | Ni | Fe | Pb | Zn |
Cupro Nickel 90 / 10 | 0.15 max | 0.35 max | 0.1 max | 0.01 max | 0.25 max | 99.0 min | 0.4 max | – | – |
Cupro Nickel 70 / 30 | – | 1.0 max | – | – | 65.0 min | 29 – 33 | 0.4-1.0 | 0.05 max | 1 max |
Mechanical Properties of Pipes & Tubes :
Standard | Symbol | Melting range °C | Electrical conductivity at 20°C m/( Ω . mm2) | Thermal conductivity at 20°C W/(m . K) | Coefficient of expansion (25 to 300°C) 10-6/K | Elastic modulus Ε kN/mm2 |
Cu-Ni 90 / 10 | CuNi10Fe1Mn1-C | 1105-1140 | 5.5 | 59 | 17 | 123 |
CuNi30Fe1Mn1NbSi-C | 1170-1240 | 2.5 | 29 | 16 | 145 | |
Standard | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | – |
Cu-Ni 70 / 30 | 0.323 lb/in3 at 68 F | 2260 °F | Psi – 50000 | Psi – 20000 | 30 % | – |
