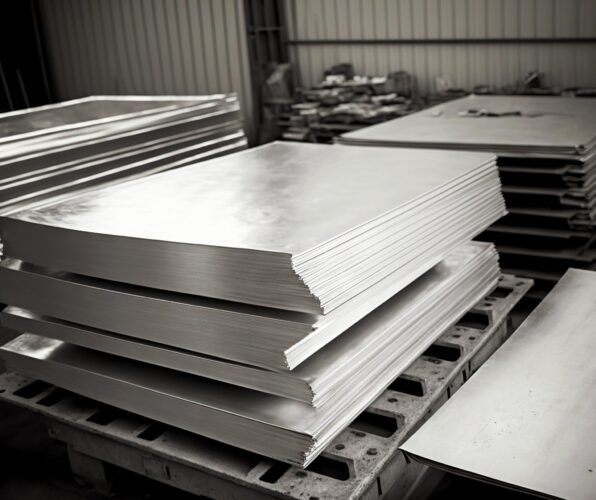

Supplier of Sheets in India - Deltron Alloys
Deltron Alloys is India’s leading Supplier of Sheets. Our inventory includes a wide range of Industrial Sheets & Plates, which are highly sought after in the Metal Market. Hot & Cold Rolled Coils are available in various sizes, shapes, and dimensions, and can be customised to meet the specific requirements of our customers. We ensure the delivery of Sheets in the right quantity and with the appropriate quality to cater to the diverse needs of various industrial sectors.
Supplier of Sheets / Plates & Coils, Hot & Cold Rolled Coils, and Industrial Sheets & Plates in India
Deltron Alloys is dedicated to meeting the demands of various industries. Our Perforated Sheets are designed with added advantages and functionality to fulfil industrial requirements. To maintain consistency and ensure compliance with all specifications, we conduct both destructive and non-destructive inspections. Additionally, we are recognized as a major supplier of Round Bars.
Applications & Utilisation of Sheets / Plates and Coils:
- Roofing Industries
- Switchgear Industries
- Heat Exchangers
- Instrumentation sector
- Metallurgical Industries
- Oil and Gas Industries
- Pharmaceuticals
- Power Plants
- Water Treatment Plants
- Water Desalination Plant sector
Additional Information about Sheets / Plates & Coils:
- Payment Modes for Sheets: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and other methods
- Packaging of Sheets: Our products are carefully packaged to ensure they reach our clients in optimal condition. Additional packaging charges may apply.
- Port of Dispatch for Sheets: Mumbai or Nhava Sheva ports in the Maharashtra state of India.
- Tax for Sheets: 18% GST.
Specification of Sheets / Plates / Coils
Specifications | ASTM A240 / ASME SA240 |
Thickness | 4mm-100mm |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
Brass | C 27000, C 27200, C 28000 |
Aluminium | 6063, 6061T6/T651, 6082 T6/T651, 5052, 5083, 5086, 7075, 1100, 2014, 2024 |
SMO 254 | SMO 254 |
Standard | ASTM,AISI,JIS,GB, DIN,EN |
Grade | 304, 304L, 304H, 316, 316L, 316TI, 317, 317L, 347, 309, 310, 310S, 409, 410, 430, DUPLEX, SUPER DUPLEX. |
Thickness | 0.3-200mm |
Length | 1000-6000mm or as customer’s requirement |
Width | 100-3000mm or as customer’s requirement |
Technique | Hot-Rolled (HR), Cold-Rolled (CR) |
Equivalent Grades for Sheets, Plates & Coils :
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х1Н10 | Z7CN18‐09 | X5CrNi18-10 |
SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18-10 | X2CrNi18-9 / X2CrNi19-11 |
SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13 M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
SS 321 | 1.4541 | S32000 | SUS 321 | – | – | – | X6CrNiTi18-10 |
SS 347 | 1.455 | S34700 | SUS 347 | – | – | – | 08Ch18N12B |
SS 410 | 1.4006 | S41000 | SUS 410 | – | X10Cr13 | – | – |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
STANDARD | WERKSTOFF NR. | UNS | SAF | – | – | – | – |
Duplex Steel S31803 | 1.4462 | S31803 | – | – | – | – | – |
Duplex Steel S32205 | 1.4462 | S32205 | 2205 | – | – | – | – |
Super Duplex Steel S32750 | 1.441 | S32750 | 2507 | – | – | – | – |
Super Duplex Steel S32760 | 1.441 | S32760 | – | – | – | – | – |
Sheets, Plates & Coils Chemical Composition :
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | – |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – | – |
SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – | – |
SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min | – |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe | – |
SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min | – |
SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min | – |
SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 68.89 min | – |
SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min | – |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | – |
SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 | – |
Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti | – |
SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max | – |
Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe | – |
SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min | – |
Grade | C | Mn | Si | P | S | Cr | Ni | – | – | – |
SS 410 | 0.015 max | 1.0 max | 1.0 max | 0.04 max | 0.030 max | 11.5 – 13.5 | 0.75 max | – | – | – |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
Duplex Steel S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
Duplex Steel S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Super Duplex Steel S32750 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Super Duplex Steel S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Mechanical Properties of Sheets, Plates & Coils :
STANDARD | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 310 | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
SS 316 | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 317L | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
STANDARD | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 321 | 95 | 217 | 515 | 205 | 40 |
STANDARD | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 347 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
STANDARD | Density | Hardness | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 410 | 7.8 g/cm3 | 82 – 96 | 65 (450) – 74 (510) | 30 (205) – 42 (290) | 20 – 34 |
STANDARD | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Duplex Steel S31803 | 7.8 g/cm 3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Duplex Steel S32205 | 7.8 g/cm 3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Super Duplex Steel S32750 | 7.8 g/cm 3 | 1350 °C (2460 °F) | ksi – 116 | ksi – 80 | 15 % |
Super Duplex Steel S32760 | 7.8 g/cm 3 | 1350 °C (2460 °F) | ksi – 116 | ksi – 80 | 15 % |
Standard | ASTM A387 / ASME SA387 |
Grade | ASTM, A-387, GR.11, 12, 22, 5, 9, 9I, CL+1/CL-2 |
Thickness | 5-150mm |
Length | 3000-18000mm or as customer’s requirement |
Width | 1000-4500mm or as customer’s requirement |
Technique | Hot-Rolled (HR), Cold-Rolled (CR) |
Equivalent Grades for Sheets, Plates & Coils :
Grade | BS | EN | ASTM/ASME | DIN |
ASTM A387 Grade 5 | – | X12CrMo5 | A387 / SA 387 | – |
ASTM A387 Grade 9 | – | – | SA387-9-2 | – |
ASTM A387 Grade 11 | 621 B | – | SA387-11-2 | – |
ASTM A387 Grade 12 | 620 B | 13 CRMO 45 | SA387-12-2 | 13 CRMO 44 |
ASTM A387 Grade 22 | 622-515B | 10 CRMO910 | SA387-22-2 | 10 CRMO910 |
Sheets, Plates & Coils Chemical Composition :
Grade | C | Mn | P | S | SI | Cr | Mo |
ASTM A387 Grade 5 | 0.15 max | 0.3 – 0.6 | 0.035 | 0.03 | 0.5 max | 4.00 – 6.00 | 0.45 – 0.65 |
ASTM A387 Grade 9 | 0.15 max | 0.30 – 0.6 | 0.03 | 0.03 | 1.0 max | 8.0 – 10.0 | 0.9 – 1.1 |
ASTM A387 Grade 11 | 0.05 – 0.17 | 0.4 – 0.65 | 0.035 | 0.035 | 0.5 – 0.80 | 1.0 – 1.5 | 0.45 – 0.65 |
ASTM A387 Grade 12 | 0.05 – 0.17 | 0.4 – 0.65 | 0.035 | 0.035 | 0.15 – 0.4 | 0.8 – 1.15 | 0.45 – 0.6 |
ASTM A387 Grade 22 | 0.05 – 0.15 | 0.3 – 0.6 | 0.035 | 0.035 | 0.5 max | 2.0 – 2.5 | 0.9 – 1.1 |
Mechanical Properties of Sheets, Plates & Coils :
Grades | Tensile | Yield | % Elongation | Bend |
ASTM A387 Grade 5 | 515 – 690 | 310 | 18 | — |
ASTM A387 Grade 11 | 515 – 690 | 310 | 22 | 18 |
ASTM A387 Grade 12 | 450 – 585 | 275 | 22 | 19 |
ASTM A387 Grade 22 | 515 – 690 | 310 | 18 | — |
Standard | ASTM / ASME A 516 / A283 |
Grade | ASTM A-516 GR.60, 65 & 70, IS 2062 GR. A/B, A36, S275, S355, S355J2+N, JO+N, Sailma 350,410, 450, A572, Gr.50, Is 2062, E250, E350, E410, Nace Hic Steel Plates |
Sizes | 1 mm to 200 mm thk in 1000 mm to 3000 mm width x 2500 mm / 5000 mm / 10000 mm / coil. |
Thickness | 3/16″ to 24″ |
Finish | Cold rolled sheet (CR), Hot rolled plate (HR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | Plain Sheet, Coils, Foils, Shim Sheet, Rolls, Chequered Plate, Perforated Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
Equivalent Grades for Sheets, Plates & Coils :
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | – | – | – | – |
ASTM A-516 GR.60 | 1.057 | G10180 | SS400 | 4360 | 3SP/PS | AC-282 | S275 | – | – | – | – |
ASTM A-516 GR.65 | 1.0585 | K11510 | SS490 | 50D | 5SP/PS | AC-312 | S355 | – | – | – | – |
ASTM A-516 GR.70 | 1.0615 | K12110 | SM490 | 50D | 5SP/PS | AC-342 | S355J2+N | – | – | – | – |
IS 2062 GR. A | – | – | – | – | – | – | – | – | – | – | – |
STANDARD | DIN 17100 | BS 4360 | EN 10025 (90) | EN 10025 (93) | NFA 35-501 | – | – | – | – | ||
IS 2062 GR. B | St 44-3U | 43 C | Fe 430C | S275J0 | E28-3 | – | – | – | – | ||
STANDARD | USA | JIS | BS | GB | EN | ISO | IS | – | – | – | – |
A36 | A36 | SM 400 A | 40EE | Q235D | Fe360D2, S235J2G4 | Fe 360B | IS 226 | – | – | – | – |
STANDARD | US | – | – | – | – | – | – | – | – | – | – |
S275 | A570Gr40 | – | – | – | – | – | – | – | – | – | – |
S355 | A572Gr50 | – | – | – | – | – | – | – | – | – | – |
STANDARD | EN 10025-2 | DIN | JIS | ASTM | – | – | – | – | |||
S355J2+N | S355J2+N | 1.0577+N | 17100 | St52-3N | G3106 | SM490YB | A572-50 | – | – | – | – |
STANDARD | WERKSTOFF NR. | UNI | JIS | BS | GB | AFNOR | EN | NBN | UNE | ISO | IS |
S355JO+N | St52-3U | Fe510C | SS490B | 50C | 16Mn | E36-3 | Fe510C | AE355C | AE355C | E355C | Fe570HT |
STANDARD | IS 2062 | IS 8500 | EN 10025 | EN 10149-2 | SEW 092:1990 | DIN | – | – | – | – | – |
SAILMA 350 | GRADE E350 | FE 490 B | ST 52.3 | S355MC | – | 1.0976 | – | – | – | – | – |
SAILMA 410 | GRADE E410 | FE 540 B | ST 54 | S420MC | QstE420TM | – | – | – | – | – | |
SAILMA 450 | GRADE E410 | FE 540 B | ST 54 | S420MC | QstE420TM | 1.098 | – | – | – | – | – |
STANDARD | EN | DIN | UNI | NF | JIS | – | – | – | – | – | – |
ASTM A572 Gr.50 | S355J2+N | ST52-3N | FE510D | E36-3 | SM490C | – | – | – | – | – | – |
STANDARD | DIN 17100 | BS 4360 | EN 10025 (90) | EN 10025 (93) | NFA 35-501 | – | – | – | – | – | – |
IS 2062 E 250 | St 44-3U | 43 C | S275J0 | Fe 430C | E28-3 | – | – | – | – | – | – |
STANDARD | DIN 17100 | ASTM | JIS | EN | – | – | – | – | – | – | – |
IS 2062 E 350 | St52-3N | A572-50 | G3106SM490YB | 10025-2:2004 S355J2+N | – | – | – | – | – | – | – |
STANDARD | DIN17100 | UNI | JIS | BS | EN10025(93) | EN10025(90) | – | – | – | – | – |
IS 2062 E 410 | St 52-3N | Fe 510 | SS490C | 50D | S355J2G3 | Fe 510D2 | – | – | – | – | – |
STANDARD | ASTM/ASME | DIN 17155 | BS | EN | – | – | – | – | – | ||
SA 516 GR.60N NACE + HIC | A/SA516 – Gr 60 | HII | BS1501-161-430A | EN10028 P265GH | – | – | – | – | – | – | – |
SA 516 GR.65N NACE + HIC | A/SA516 – Gr 65 | 17 MN 4 | BS1501-224-460A/B | EN10028 P295GH | – | – | – | – | – | – | – |
SA 516 GR.70N NACE + HIC | A/SA516 – Gr 70 | – | BS1501-224-490A/B | EN10028 P355GH | – | – | – | – | – | – | – |
Sheets, Plates & Coils Chemical Composition :
Standard | C | Si | Mn | P | S | Fe | – | – | – | – | – | – | – |
ASTM A-516 GR.60 | 0.20 – 0.26 | 0.15 – 0.30 | 0.60 – 1.65 | 0.035 max | 0.035 max | balance | – | – | – | – | – | – | – |
ASTM A-516 GR.65 | 0.20 – 0.26 | 0.15 – 0.30 | 0.60 – 1.65 | 0.035 max | 0.035 max | balance | – | – | – | – | – | – | – |
ASTM A-516 GR.70 | 0.20 – 0.26 | 0.15 – 0.30 | 0.60 – 1.65 | 0.035 max | 0.035 max | balance | – | – | – | – | – | – | – |
IS 2062 GR. A | 0.23 | 0.4 | 1.5 | 0.05 | 0.05 | – | – | – | – | – | – | – | – |
IS 2062 GR. B | 0.22 | 0.4 | 1.5 | 0.045 | 0.045 | – | – | – | – | – | – | – | – |
ASTM A36 | 0.25 max | 0.4 max | 0.8-1.2 | 0.035 max | 0.035 max | – | – | – | – | – | – | – | – |
S275 | 0.22 max | 0.05 max | 1.60 max | 0.05 max | 0.05 max | – | – | – | – | – | – | – | – |
S355 | 0.20 max | 0.55 max | 1.60 max | 0.025 max | 0.025 max | – | – | – | – | – | – | – | – |
Standard | C | Si | Mn | P | S | Cu | CEV | – | – | – | – | – | – |
S355J2+N | 0.22 max | 0.55 max | 1.60 max | 0.035 max | 0.035 max | 0.55 max | 0.47 max | – | – | – | – | – | – |
Standard | C | Si | Mn | P | S | Cu | CEV | N | – | – | – | – | – |
S355JO+N | 0.22 max | 0.55 max | 1.6 max | 0.035 max | 0.035 max | 0.55 max | 0.47 max | 0.012 max | – | – | – | – | – |
Standard | C | Si | Mn | P | S | – | – | – | – | – | – | – | – |
SAILMA 350 | 0.2 | 0.5 | 1.5 | 0.04 | 0.04 | – | – | – | – | – | – | – | – |
Standard | C | Si | Mn | P | S | Al | Nb + V + Ti | – | – | – | – | – | – |
SAILMA 410 | 0.25 | 0.4 | 1.5 | 0.055 | 0.055 | 0.01 | 0.2 | – | – | – | – | – | – |
Standard | C | Si | Mn | P | S | – | – | – | – | – | – | – | – |
SAILMA 450 | 0.2 | 0.5 | 1.5 | 0.04 | 0.04 | – | – | – | – | – | – | – | – |
Standard | C | Si | Mn | P | S | Co | V | Ni | – | – | – | – | – |
ASTM A572 Gr.50 | 0.23 | 0.4 | 1.35 | 0.04 | 0.05 | 0.05 | 0.06 | 0.015 | – | – | – | – | – |
Standard | C | Si | Mn | P | S | CE | – | – | – | – | – | – | – |
IS 2062 E 250 | 0.23 | 0.4 | 1.5 | 0.045 | 0.045 | 0.42 | – | – | – | – | – | – | – |
IS 2062 E 350 | 0.2 | 0.45 | 1.5 | 0.045 | 0.045 | – | – | – | – | – | – | – | – |
IS 2062 E 410 | 0.2 | 0.45 | 1.6 | 0.045 | 0.045 | 0.5 | – | – | – | – | – | – | – |
Standard | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
SA 516 GR.60N NACE + HIC | 0.2 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
SA 516 GR.65N NACE + HIC | 0.08/0.20 | 0.4 | 0.9/1.5 | 0.03 | 0.03 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
SA 516 GR.70N NACE + HIC | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 min | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
Mechanical Properties of Sheets, Plates & Coils :
Standard | Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
ASTM A-516 GR.60 | 485-620 (70-90) | 260 (38) | 17 | 21 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
ASTM A-516 GR.65 | 65-85 | 35 | 19 | 23 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
ASTM A-516 GR.70 | 485-620 (70-90) | 260 (38) | 17 | 21 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | Yield strength (Mpa)(Min) | Tensile strength (Mpa)(Min) | Elongation (%) | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
<20mm | 20mm-40mm | >40mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
IS 2062 GR A | 250 | 240 | 230 | 410 | 23 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | Yield strength (Mpa)(Min) | Tensile strength (Mpa)(Min) | Elongation (%) | IMPACT (Min) | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
<20mm | 20mm-40mm | >40mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ||||
IS 2062 GR B | 250 | 240 | 230 | 410 | 23 | 27J at 0 ° C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | Tensile strength MPa | Yield strength MPa | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
A36 | 400 – 550 | 250 | 20 | 23 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
S275 | 370 – 530 | 275 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
S355 | 470 – 630 | 355 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | Thickness (mm) | Yield Strength Reh min (N / mm²) | Tensile Strength Rm min (N / mm²) | Elongation A5 min (%) | Impact Values Charpy-V-Notch Longitudinal Average from 3 Speimens Thk. >10<150mm. | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
S355J2+N | 3<thk<100 | 315-355 | 490-630 | max 22 | 27 Joules at -20 C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | Tensile strength (MPa) | Yield strength (MPa) | Elongation Lo = 5,65 √ (%) | Elongation Lo = 80 mm (%) | ||||||||||||||||||
to 3 | 3 – 100 | 100 – 150 | 150 – 250 | to 16 | 16 – 40 | 40 – 63 | 63- 80 | 80 – 100 | 100 – 150 | 150 – 200 | 200 – 250 | Mar – 40 | 40 – 63 | 63 – 100 | 100 – 150 | 150 – 250 | to 1 | 1 – 1.5 | 1.5 – 2 | 2 – 2.5 | 2.5 – 3 | |
S355JO+N | 510 – 680 | 470 – 630 | 450 – 600 | 450 – 600 | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 | 22 | 21 | 20 | 18 | 17 | 22 | 21 | 20 | 18 | 17 |
Standard | Yield strength (MPa) (Min) | Tensile strength (MPa) (Min) | Elongation (%) | Impact (Min) | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
SAILMA 350 | 355 | 490 – 610 | 21 | 40J at 0°C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
SAILMA 410 | 410 | 540 – 660 | 19 | 35J at 0°C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
SAILMA 450 | 410 | 540-660 | 20 | 35J at 0°C | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | Thickness | Yield | Tensile | Elongation | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
A572 Grade 50 | 8mm-200mm | MPa – 345 min | MPa – 450 min | 18 – 21% | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
IS 2062 E 250 | 5mm-150mm | MPa – 250 min | MPa – 410 min | 23 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | Yield strength (Mpa)(Min) | Tensile strength (Mpa)(Min) | Elongation (%) | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
<20mm | 20mm-40mm | >40mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
IS 2062 E350 | 350 | 330 | 320 | 490 | 22 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
IS 2062 E410 | 410 | 390 | 380 | 540 | 20 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | Tensile strength MPa | Yield strength MPa | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
SA 516 GR.60N NACE + HIC | 415-550 | 250 | 21 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
SA 516 GR.65N NACE + HIC | 450-585 | 240 | 19 | 23 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
SA 516 GR.70N NACE + HIC | 485-620 | 260 | 17 | 21 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Standard | ASTM, ASME and API |
Grade | 200 BHN, 400 BHN, 450 BHN & 500 BHN |
Width | 1,500mm to 2,500mm |
Thickness | 4.0mm – 100mm |
Length | 6,000mm to 12,000mm |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
Equivalent Grades for Sheets, Plates & Coils :
Grade | STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
BHN 200 | ASTM A108 | 1010 | G10100 | SS14 | EN 10016-3 | 08ps | E295 | 1.0301 |
ASTM A36 | 1020 | G10200 | SS400 | EN10025-S235JR | 09G2S | E225 | 1.0038 | |
BHN 400 | ASTM A572 | Gr. 50 | G50 | SM570 | EN10025-S460N | 14G2AF | E460 | 1.821 |
ASTM A514 | Gr. F | G10220 | SM490B | EN10025-S355J2G3 | 16Mo3 | E355 | 1.057 | |
BHN 450 | ASTM A572 | Gr. 60 | G60 | SM590 | EN10025-S550N | 16MnCr5 | E550 | 1.8143 |
ASTM A514 | Gr. Q | G10230 | SM520B | EN10025-S420J2G3 | 18Mo3 | E420 | 1.058 | |
BHN 500 | ASTM A572 | Gr. 65 | G65 | SM620 | EN10025-S690N | 20MnCr5 | E690 | 1.8159 |
ASTM A514 | Gr. T | G10240 | SM550B | EN10025-S460J2G3 | 20Mo3 | E460 | 1.06 |
Sheets, Plates & Coils Chemical Composition :
Grade | C | Mn | S | P | Si | – | – | – | – | – |
BHN 200 | 0.23 max | 1.6 min | 0.05 max | 0.05 max | 0.5 max | – | – | – | – | – |
Grade | Plate (thickness mm) | C | Si | Mn | P | S | Cr | Ni | Mo | B |
BHN 400 | 3 – 6 | 0.15 max | 0.70 max | 1.60 max | 0.025 max | 0.01 max | 0.50 max | 0.25 max | 0.25 max | 0.004 max |
3 – (8) | 0.15 max | 0.70 max | 1.60 max | 0.025 max | 0.01 max | 0.30 max | 0.25 max | 0.25 max | 0.004 max | |
8 – 20 | 0.15 max | 0.70 max | 1.60 max | 0.025 max | 0.01 max | 0.50 max | 0.25 max | 0.25 max | 0.004 max | |
(20) – 32 | 0.18 max | 0.70 max | 1.60 max | 0.025 max | 0.01 max | 1.00 max | 0.25 max | 0.25 max | 0.004 max | |
(32) – 45 | 0.22 max | 0.70 max | 1.60 max | 0.025 max | 0.01 max | 1.40 max | 0.50 max | 0.60 max | 0.004 max | |
(45) – 51 | 0.22 max | 0.70 max | 1.60 max | 0.025 max | 0.01 max | 1.40 max | 0.50 max | 0.60 max | 0.004 max | |
(51) – 80 | 0.27 max | 0.70 max | 1.60 max | 0.025 max | 0.01 max | 1.40 max | 1.00 max | 0.60 max | 0.004 max | |
(80) – 130 | 0.32 max | 0.70 max | 1.60 max | 0.025 max | 0.01 max | 1.40 max | 1.50 max | 0.60 max | 0.004 max | |
Grade | C | Mn | S | P | Si | Cr | Ni | Mo | B | – |
BHN 450 | 0.26 max | 1.6 max | 0.01 max | 0.025 max | 0.7 max | 1040 max | 1050 max | 0.6 max | 0.005 max | – |
Grade | Plate (thickness mm) | C | Si | Mn | P | S | Cr | Ni | Mo | B |
BHN 500 | 4 – 13 | 0.27 max | 0.7 max | 1.6 max | 0.025 max | 0.01 max | 1.0 max | 0.25 max | 0.25 max | 0.004 max |
(13) – 32 | 0.29 max | 0.7 max | 1.6 max | 0.025 max | 0.01 max | 1.0 max | 0.50 max | 0.30 max | 0.004 max | |
(32) – 40 | 0.29 max | 0.7 max | 1.6 max | 0.025 max | 0.01 max | 1.0 max | 1.00 max | 0.60 max | 0.004 max | |
(40) – 80 | 0.30 max | 0.7 max | 1.6 max | 0.025 max | 0.01 max | 1.50 max | 1.50 max | 0.60 max | 0.004 max |
Mechanical Properties of Sheets, Plates & Coils :
Grade | Yield (Min Mpa) | Tensile (Mpa) | Elongation % | Reduction of area % | |
BHN 200 | 250 – 350 | 350 – 450 | 20 – 30 | 30 – 40 | |
Grade | Yield (Min Mpa) | Tensile (Mpa) | Elongation % | – | |
BHN 400 | 1000 | 1250 | 10 | – | |
BHN 450 | 1200 | 1400 | 10 | – | |
Grade | HBW Thickness/Mpa | Elongation % | – | – | |
4-32MM | 470-530 | ||||
BHN 500 | (32) – 80 | 450 – 540 | 10 | – | – |
Item | Hadfield High Manganese Steel Sheets & Plates |
Grade | 12-14% MN |
Thickness | 35 – 150mm |
Length | 3000 – 18000mm |
Width | 1000 – 4500mm |
Technique | Hot-Rolled (HR) |
Impact tested | -52° C |
Equivalent Grades for Sheets, Plates & Coils :
Grade | EURONORM | DIN | ASTM | AFNOR |
12-14% MN | 1.3401 – X120Mn13 | W1.3401 | A128 Gr B2 | X120Mn13 |
Sheets, Plates & Coils Chemical Composition :
Grade | C | Mn | Si | S | P |
12-14% MN | 1.20% | 12.00-14.00% | 0.15% | 0.02% | 0.02% |
Mechanical Properties of Sheets, Plates & Coils :
Grade | Tensile Strength N/mm² | Yield Strength N/mm² | Elongation % | Hardness Brinell |
12-14% MN | 880 | 320 | 40 | 200 |
Standard | ASTM A588 / ASME SA588 |
Grade | A & B, A588 GR A & B S355, J2W |
Dimension Standard | JIS, AISI, ASTM, GB, DIN, EN, etc |
Width | 500mm, 1250mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Thickness | 0.3 mm to 120 mm |
Length | 2500mm, 1000mm, 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), rustic look |
Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank(Circle), Ring (Flange) |
Equivalent Grades for Sheets, Plates & Coils :
Grade | EN 10025-5:2004 |
Corten A | S355J0WP |
Corten B | S355J0W and S355J2W |
Grade | EN 10025-5 |
ASTM A588 GR.A | S355J2WP |
ASTM A588 GR.B | S355J2W+N |
Grade | ASTM |
S355J2W | A588 Grade A |
Sheets, Plates & Coils Chemical Composition :
Grade | C | Si | Mn | P | S | Cr | Ni | Cu | Nb+V+Ti | |
Corten A | 0.12 | 0.25-0.75 | 0.20-0.50 | 0.07-0.15 | 0.03 | 0.50-1.25 | 0.65 | 0.25-0.55 | – | |
Grade | C | Si | Mn | P | S | Cr | Ni | Cu | Al | V |
Corten B | 0.19 max | 0.30 – 0.65 | 0.80 – 1.25 | 0.035 max | 0.030 max | 0.40 – 0.65 | 0.40 max | 0.25 – 0.40 | 0.020 – 0.06 | 0.02 – 0.10 |
Grade | C | Si | Mn | P | S | Cr | Ni | Cu | N | |
ASTM A588 GR.A | 0.19 Max | 0.30-0.65 | 0.80-1.25 | 0.05 | 0.04 | 0.40-0.65 | 0.05 | 0.25-0.40 | 0.01 | |
Grade | C | Si | Mn | P | S | Cr | Ni | Cu | N | V |
ASTM A588 GR.B | 0.20 Max | 0.15-0.50 | 0.75-1.35 | 0.04 | 0.05 | 0.40-0.70 | 0.05 | 0.20-0.40 | 0.01 | 0.01-0.10 |
Grade | C | Si | Mn | P | S | Cr | CEV | Cu | ||
S355J2W | 0.16 max. | 0.50 max. | 0.5 – 1.5 | 0.03 max. | 0.03 max. | 0.4 – 0.8 | 0.52 max. | 0.25 – 0.55 |
Mechanical Properties of Sheets, Plates & Coils :
Grade | Yield point ReH Mpa *) | Tensile strength Rm MPa | Elongation % | Bend | |||||||
CORTEN A | 355 | 470-630 Mpa | 20 | 24t | |||||||
Grade | Yield strength ReL N/mm² Minimum | Tensile strength Rm N/mm² Minimum | Elongation A50% Minimum | – | |||||||
CORTEN B | 345 | 485 | 19 | – | |||||||
Yield Strength ReH[N/mm2]transv.min | TensileStrength Rm[N/mm2]transv | Thickness | – | ||||||||
A588 Gr. A | 340 KPa 320 KPa 290 KPa | 480 KPa 460 KPa 430 KPa | 0mm-100mm 102mm-127mm 127mm-203mm | – | |||||||
– | |||||||||||
– | |||||||||||
A588 Gr. B | 340 KPa 320 KPa 290 KPa | 480 KPa 460 KPa 430 KPa | 0mm-100mm 102mm-127mm 127mm-203mm | – | |||||||
– | |||||||||||
– | |||||||||||
Grade | Min. Yield Strength Reh MPa | Tensile Strength Rm MPa | |||||||||
Nominal Thickness (mm) | Nominal Thickness (mm) | ||||||||||
≤16 | >16 ≤40 | >40 ≤63 | >63 ≤80 | >80 ≤100 | >100 ≤150 | >3 | >3 ≤100 | >100 ≤150 | |||
S355J2W | 355 | 345 | 335 | 325 | 315 | 295 | 510/680 | 470/630 | 450/600 |
Specification | High Tensile Steel Plates |
Grade | S690QL & S700MC, S550MC, HITEN 780LE |
Sizes | 1 mm to 200 mm thk in 1000 mm to 3000 mm width x 2500 mm / 5000 mm / 10000 mm / coil. |
Width | 1000 – 3000 mm |
Lengths | up to 20m |
Thickness | 3 to 250 mm |
Technique | Hot-Rolled (HR) and Cold-Rolled (CR) |
Equivalent Grades for Sheets, Plates & Coils :
Grade | Standard | JIS | DIN, WNr | ASTM | ISO 4952 | AFNOR |
S690QL | EN 10025-2:2004 | JFE HITEN 780LE | TStE690V DILLIMAX 690 NAXTRA 70 | A709-100 | E690 | E690T, E690TFP, S690T |
Grade | BS1449 | ASTM | UNI8890 | NFA 36-231 | SEW092 | – |
S700MC | 75F70 | A514 | – | E690D | QStE 690 TM | – |
Grade | BS1449 | ASTM | UNI8890 | NFA 36-231 | SEW092 | – |
S550MC | 60F45/60F55 | 080XLK | FeE560TM | E560D | QStE 550TM | – |
Grade | Standard | JIS | WES | ASTM | – | – |
HITEN 780LE | JFE-HITEN 780LE | G3128 SHY685 SHY685N SHY685NS | HW 685 | A514 A709 Gr.100 | – | – |
Sheets, Plates & Coils Chemical Composition :
Grade | C | Si | Мn | P | S | N | B | Сr | Сu | Мо | Nb | Ni | V |
S690QL | 0.20 | 0.80 | 1.70 | 0.020 – 0.025 | 0.010 – 0.015 | 0.015 | 0.005 | 1.50 | 0.50 | 0.70 | 0.06 | 2.00 | 0.12 |
Grade | C | Si | Mn | P | S | AL | Nb | V | Ti | Mo | B | – | – |
S700MC | 0.12 | 0.6 | 2.1 | 0.025 | 0.015 | 0.015 | 0.09 | 0.2 | 0.22 | 0.5 | 0.005 | – | – |
Grade | C | Si | Mn | P | S | AL | Nb | V | Ti | – | – | – | – |
S550MC | 0.12 | 0.5 | 1.8 | 0.025 | 0.015 | 0.015 | 0.09 | 0.2 | 0.15 | – | – | – | – |
Grade | C | Mn | B | Ceq* | – | – | – | – | – | – | – | – | – |
HITEN 780LE | ≤0.20 | 1.60 | ≤0.005 | ≤0.40 1 | – | – | – | – | – | – | – | – | – |
Mechanical Properties of Sheets, Plates & Coils :
Grade | Thickness, mm | Yield strength, min MPa | Tensile strength, MPa | Elongation, min % | – | – |
S690QL | ≥8 t ≤50 | 690 | 770 – 940 | 14 | – | – |
Grade | ReH-Minimum yield strength(Mpa) | Rm-Tensile strength(Mpa) | Nominal thickness(mm) | A-Minimum elongation Lo=5,65√So(%) | Nominal thickness(mm) | A-Minimum elongation Lo=Lo=80mm(%) |
S700MC | 700 | 750 – 950 | From3 | 12 | to3 | 10 |
Grade | ReH-Minimum yield strength(Mpa) | Rm-Tensile strength(Mpa) | Nominal thickness(mm) | A-Minimum elongation Lo=5,65√So(%) | Nominal thickness(mm) | A-Minimum elongation Lo=Lo=80mm(%) |
S550MC | 550 | 600 – 760 | From3 | 14 | to3 | 12 |
Grade | Thickness (mm) | Yield Strength Min. (N/mm 2) | Tensile Strength (N/mm 2) | – | – | – |
HITEN 780LE | 6 – 32 | 685 | 780 – 930 | – | – | – |
Standard | ASTM / ASME SB 168 |
Grade | INCOLLOY 800/800H, INCOLLOY 825, HASTELLOY C-276, ALLOY 20, ETC. |
Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
Thickness | 0.1mm to 12 mm Thk |
Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
Equivalent Grades for Sheets, Plates & Coils :
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | EN | AFNOR | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | X10NiCrAlTi32-20 | Z8NC32-21 | XH32T |
Incoloy 800H | 1.4958 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | X10NiCrAlTi32-20 | Z8NC32-21 | XH32T |
Incoloy 800HT | 1.4959 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | X8NiCrAlTi32-21 | – | XH32T |
Alloy 825 | 2.4858 | N08825 | NCF 825 | NA 21 | ЭП703 | NiCr22Mo9Nb | NC22DNB4M | ЭИ602 |
Hastelloy C276 | 2.4819 | N10276 | NW 0276 | – | ХН65МВУ | NiMo16Cr15W | – | ЭП760 |
Alloy 20 | 2.466 | N08020 | – | – | – | NiCr20CuMo | Z2NCUD31-20AZ | – |
Sheets, Plates & Coils Chemical Composition :
Grade | C | Si | Mn | Cr | Ni | Fe | Cu | Ti | Al | S |
Incoloy 800 | 0.1 max | 1.0 max | 1.5 max | 19.0 – 23.0 | 30.0 – 35.0 | 39.5 min | 0.75 max | 0.15 – 0.60 | 0.15 – 0.60 | 0.015 max |
Incoloy 800H | 0.05 – 0.10 | 1.0 max | 1.5 max | 19.0 – 23.0 | 30.0 – 35.0 | 39.5 min | 0.75 max | 0.15 – 0.61 | 0.15 – 0.61 | 0.015 max |
Incoloy 800HT | 0.06 – 0.10 | 1.0 max | 1.5 max | 19.0 – 23.0 | 30.0 – 35.0 | 39.5 min | 0.75 max | 0.25 – 0.60 | 0.85 – 1.20 | 0.015 max |
Incoloy 825 | 0.10 max | 0.50 max | 0.50 max | 20.0 – 23.0 | 58.0 min | 5.0 max | – | 0.40 max | 0.40 max | 0.015 max |
Grade | C | Si | Mn | Cr | Ni | Fe | Co | Mo | P | S |
Hastelloy C276 | 0.010 max | 0.08 max | 1.00 max | 14.50 – 16.50 | 50.99 min | 4.00 – 7.00 | 2.50 max | 15.00 – 17.00 | 0.04 max | 0.03 max |
Grade | C | Si | Mn | Cr | Ni | Fe | Cu | Mo | P | S |
Alloy 20 | 0.07 max | 1.00 max | 2.00 max | 19.00 – 21.00 | 32.00 – 38.00 | 29.85 min | 3.00 – 4.00 | 2.00 – 3.00 | 0.045 max | 0.035 max |
Mechanical Properties of Sheets, Plates & Coils :
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Incoloy 800 | 7.94 g/cm3 | 1350-1400 °C | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
Incoloy 800H | 7.94 g/cm3 | 1350-1400 °C | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
Incoloy 800HT | 7.94 g/cm3 | 1350-1400 °C | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
Incoloy 825 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa -930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
Standard | ASTM / ASME SB122 |
Grade | 90/10 -CuNi UNS C70600, 70/30 -CuNi UNS C715000, ETC. |
Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
Thickness | 0.1mm to 12 mm Thk |
Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
Equivalent Grades for Sheets, Plates & Coils :
STANDARD | WERKSTOFF NR. | UNS |
Cupro Nickel 90 / 10 | 2.0872 | C70600 |
Cupro Nickel 70 / 30 | 2.0882 | C71500 |
Sheets, Plates & Coils Chemical Composition :
Grade | Cu | Mn | Pb | Ni | Fe | Zn |
Cupro Nickel 90 / 10 | 88.6 min | 1.0 max | 0.05 max | 9 – 11 max | 1.8 max | 1 max |
Cupro Nickel 70 / 30 | 65.0 min | 1 max | 0.05 max | 29 – 33 | 0.4 – 1.0 | 1 max |
Mechanical Properties of Sheets, Plates & Coils :
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Cu-Ni 90 / 10 | 0.323 lb/in3 at 68 F | 2260 °F | Psi – 50000 | Psi – 20000 | 30 % |
Cu-Ni 70 / 30 | 0.323 lb/in3 at 68 F | 2260 °F | Psi – 50000 | Psi – 20000 | 30 % |
Item | EN series |
Grade | EN – 8, 9, 19, 24 |
Thickness | from 3mm up to as thick as 150mm |
Length | 3000mm-18000mm |
Impact tested | -52° C |
Technique | Hot-Rolled (HR) |
Equivalent Grades for Sheets, Plates & Coils :
Grade | BS970: 1955 | BS970/PD970: 1970 onwards | European | Werkstoff No. | US SAE (AISI) |
EN – 8 | EN8 | 080M40 | C40, C45, Ck40,Ck45, Cm40, Cm45 | 1.0511, 1.1186, 1.1189 | 1039, 1040, 1042, 1043, 1045 |
Grade | BS 970 1991 | BS 970 1955 EN | AISI/SAE | Werkstoff | – |
EN – 9 | 070M55 | EN9 | 1055 | 1.0535 | – |
EN – 19 | 708M40 | EN19 | 4140 | 1.7225 | – |
EN – 24 | 817M40 | EN24 | 4340 | 1.6582 | – |
Sheets, Plates & Coils Chemical Composition :
Grade | C | Si | Mn | P | S | – | – | – |
EN – 8 | 0.35 – 0.45 | 0.05 – 0.30 | 0.60 – 1.00 | 0.06 max | 0.06 max | – | – | – |
Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
EN – 9 | 0.50 – 0.60 | 0.05 – 0.35 | 0.50 – 0.80 | 0.040 max | 0.040 max | – | – | – |
EN – 19 | 0.35 – 0.45 | 0.10 – 0.35 | 0.50 – 0.80 | 0.04 | 0.04 | 0.90 – 1.40 | – | 0.20 – 0.40 |
EN – 24 | 0.35 – 0.45 | 0.10 – 0.35 | 0.45 – 0.70 | 0.04 | 0.04 | 0.90 – 1.40 | 1.30 – 1.80 | 0.20 – 0.40 |
Mechanical Properties of Sheets, Plates & Coils :
Grade | Heat Treatment | Corresponding Specification | ||||||||
Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rockwell hardness | JAPAN JIS | AISI | Poldi Thread | ||||
EN – 8 | 750-900 | Oil | 150-200 | – | – | – | – | |||
Grade | Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Hardness HB | Limited Ruling Section mm | |||
EN – 9 | Normalise | 45 | 700 | – | 12 | 201-255 | 63 | |||
39 | 600 | – | 13 | 170/223 | 250 | |||||
R | 45/55 | 700/850 | 385 | 14 | 201/277 | 100 | ||||
S | 50/60 | 775/925 | 450 | 14 | 223/277 | 63 | ||||
T | 55/65 | 850/1000 | 555 | 12 | 248/302 | 19 | ||||
Grade | Max Stress | Impact KCV | Hardness | Yield Stress | 0.2% Proof Stress | Elongation | – | |||
EN – 19 | 850 – 1000 n/mm2 | 55 Joules Min | 248-302 HB | 700 N/mm2 Min | 680 N/mm2 Min | 9% Min | – | |||
Grade | Max Stress | Impact KCV | Hardness | Yield Stress | 0.2% Proof Stress | Elongation | – | |||
EN – 24 | 850 – 1000 n/mm2 | 50 Joules Min | 35 Joules Min | 248-302 HB | 680 n/mm2 Min | 654 n/mm2 Min | 665 n/mm2 Min | 635 n/mm2 Min | 13% Min | – |
Up to 150 mm LRS | 150 to 250 mm LRS | Up to 150 mm LRS | 150 to 250 mm LRS | Up to 150 mm LRS | 150 to 250 mm LRS |
